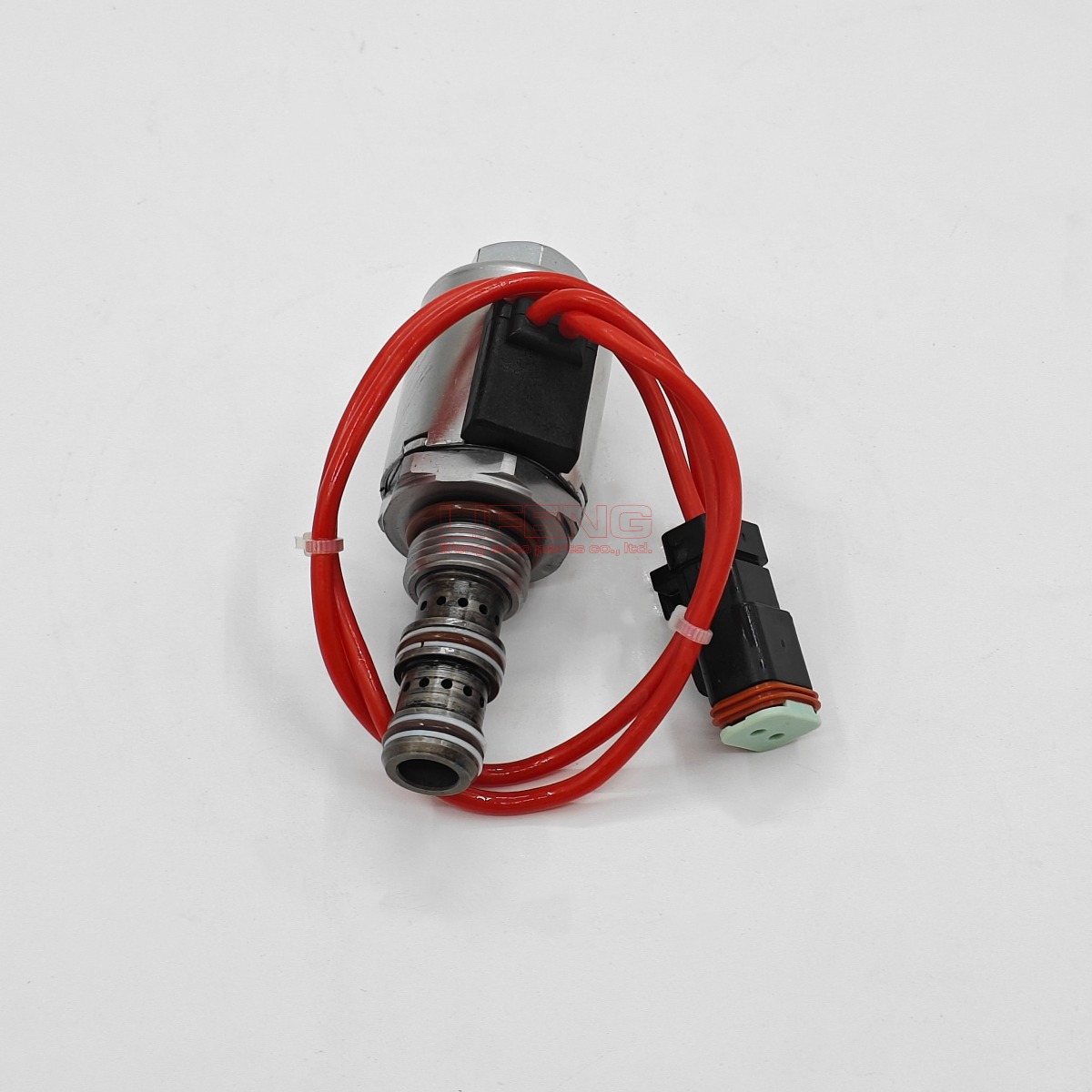

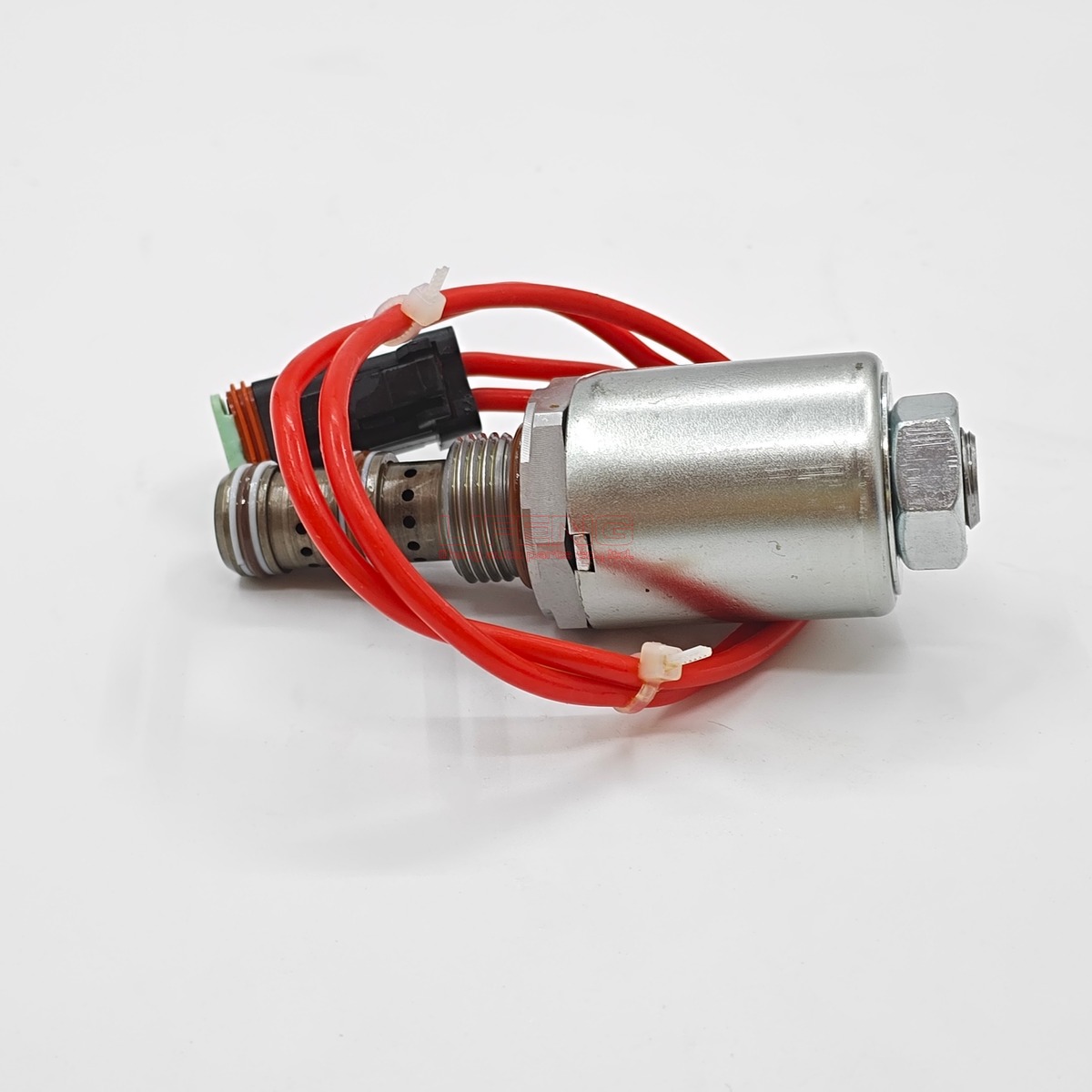

121-4036 12V Transmission Solenoid Valve Group For CAT Backhoe Loader 416C 420D

Product Overview

121-4036 (also written as 1214036) is a 12V transmission hydraulic solenoid valve group engineered for Caterpillar heavy equipment. As a core electrical component within the power train system, it regulates hydraulic oil flow and pressure inside the transmission assembly. It controls clutch engagement to complete gear shifts for power shift and direct drive transmissions, delivering smooth gear selection for CAT backhoe loaders powered by 3054C and matching engines.

Key Specifications

Compatible Models

CAT Backhoe Loaders

416C, 416D, 420D, 424D, 426C, 428C, 428D, 430D, 432D, 436C, 438C, 438D, 442D, 446B, 446D

FAQs

Q: What is the function of the 121-4036 solenoid valve?

A: This transmission solenoid manages hydraulic pressure and oil flow for the power train. It activates the transmission clutches to enable gear changes for forward and reverse movement on CAT backhoe loaders.

Q: What are the typical failure symptoms of this solenoid?

A: Burned coil, poor connector contact or spool stuck by oil contaminants will trigger several issues. The machine may fail to engage forward or reverse gears. Operators can also experience harsh shifting, gear slipping, or dashboard error codes related to transmission solenoid voltage and current faults.

Q: What connector type does this CAT 121-4036 solenoid use?

A: It comes with a 2 pin DT Deutsch connector, and features 3-way 2-position valve design with 3/4-16 thread size.

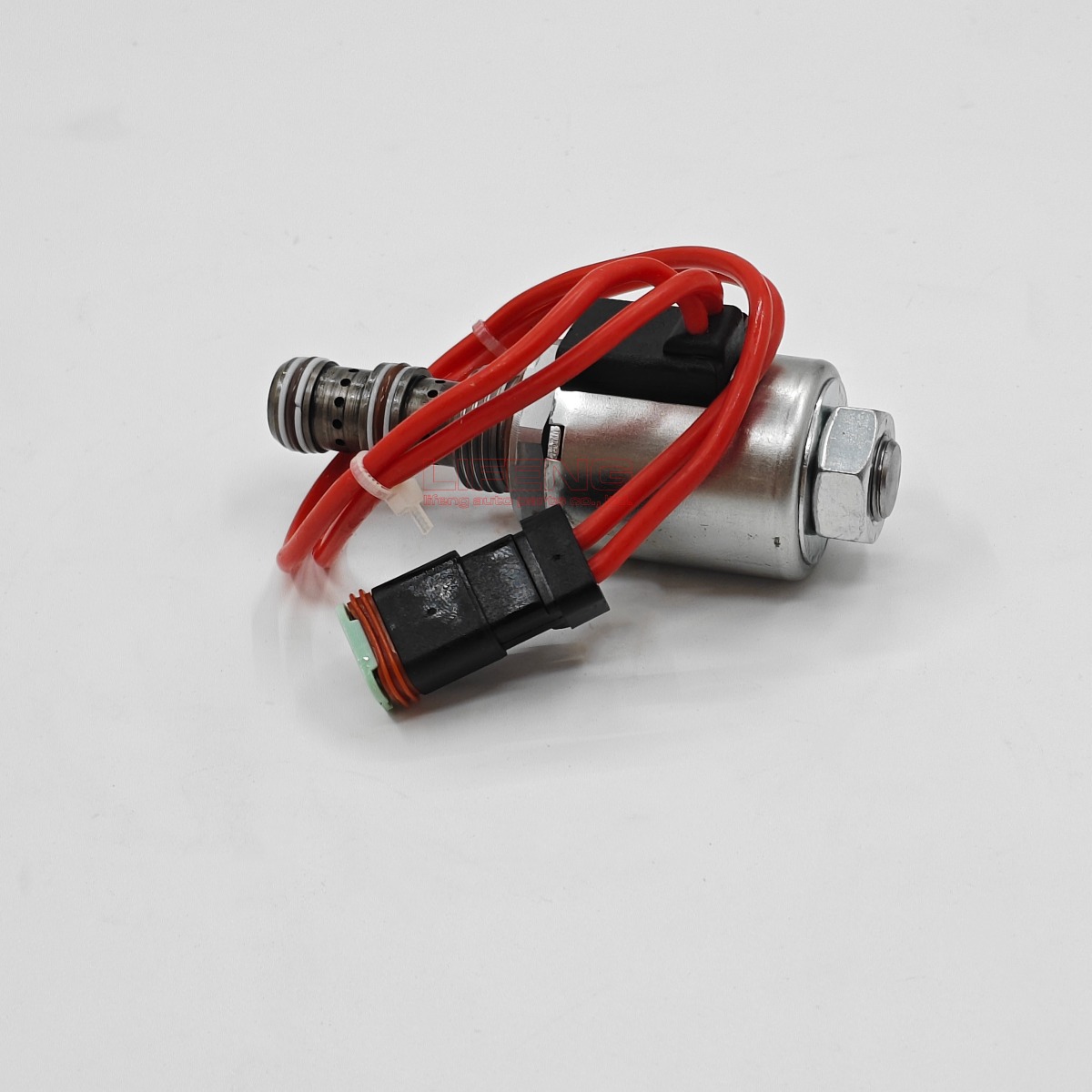

1214036-solenoid-valve
