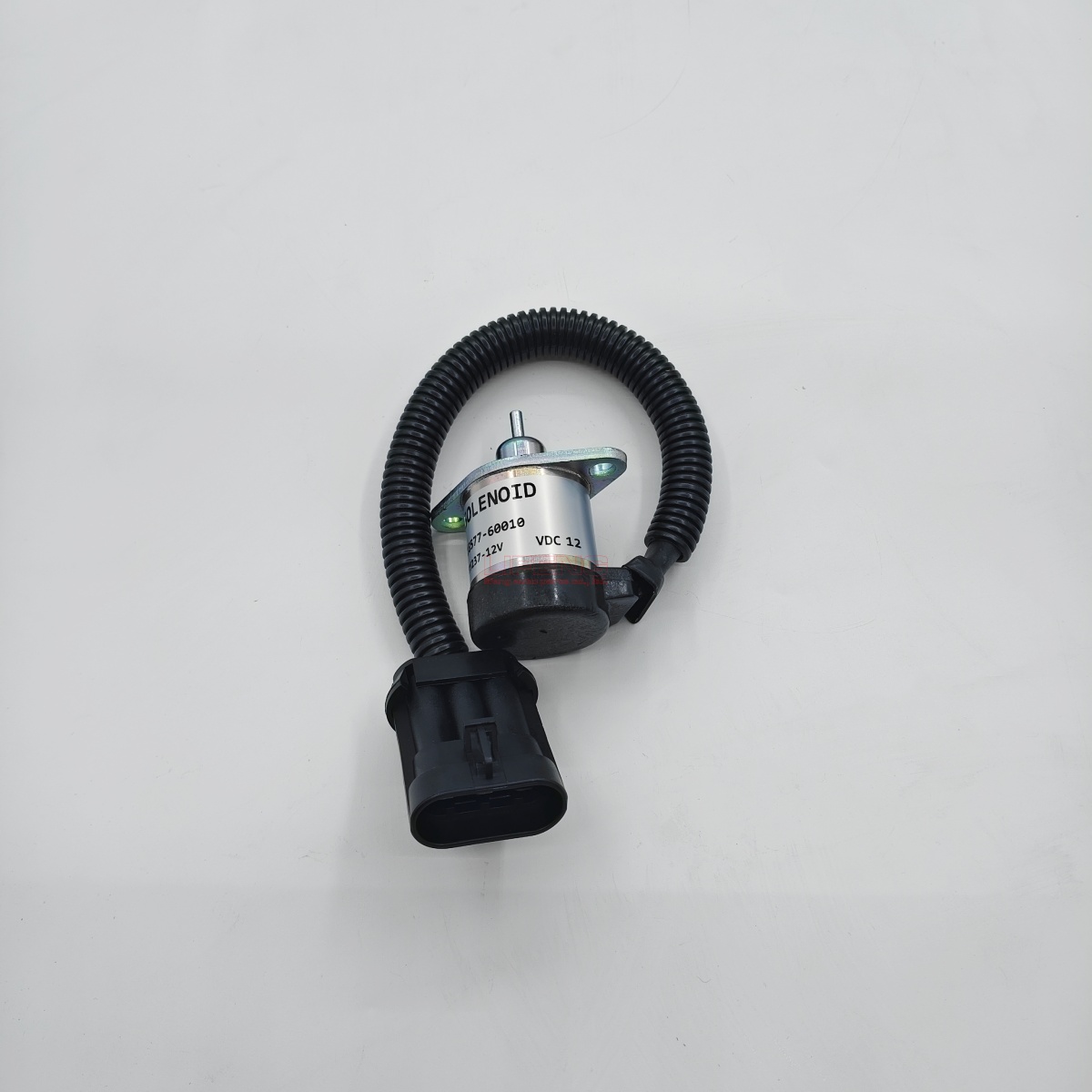

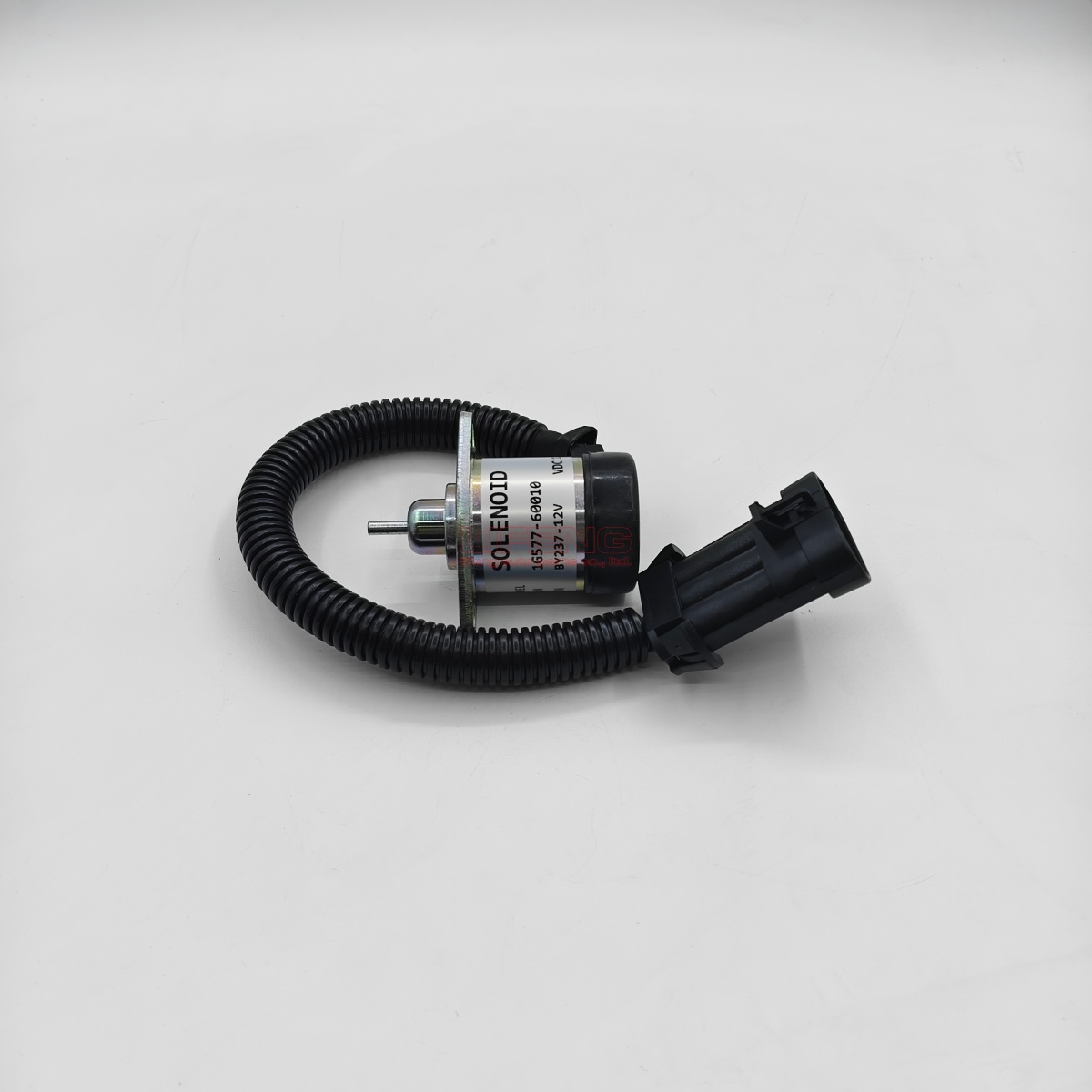

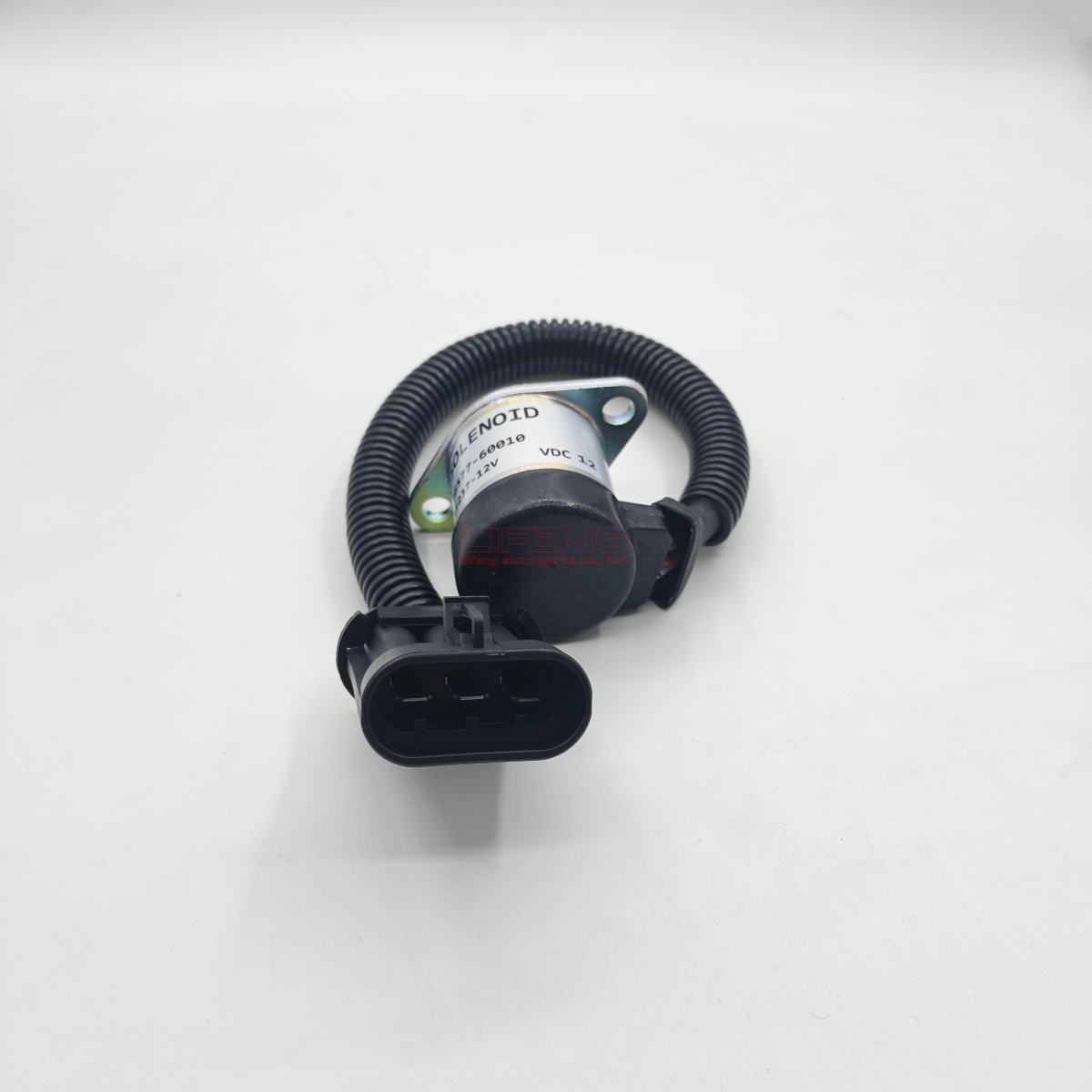

1G577-60010 12V Heavy Duty Fuel Shutoff Solenoid for Kubota V3300 V3800 Engine Bobcat S220 S250 S300

Product Overview

This heavy-duty 12V fuel shut down solenoid, part number 1G577-60010, is engineered for larger displacement Kubota diesel engines including 3.3L and 3.8L 4-cylinder series. Built with dual-coil design, it uses a pull coil with high current to open the fuel circuit on startup, alongside a low-current hold coil to maintain fuel flow during engine operation.

Fitted with a 3-terminal connector, this fuel stop solenoid is widely used on mid-to-large skid steer loaders, track loaders and heavy excavators. It features cross compatibility with multiple OEM part numbers, making it a reliable replacement to restore proper engine shutdown function for your heavy machinery.

Key Specifications

FAQs

Q: What engines does 1G577-60010 fuel shutoff solenoid fit?

A: It works for Kubota V3300, V3300-DI-T, V3800 and V3800-T diesel engines.

Q: What Bobcat machines are compatible with this solenoid?

A: It fits Bobcat skid steer loaders and excavators including S220, S250, S300, S330, S750, S770, S850, T250, T300, T320, T750, T770, T870, A300, A770, V417.

Q: What is the dual coil working principle of this shutoff solenoid?

A: The high-current pull coil activates to open the fuel path when starting. Once the engine runs, the low-current hold coil takes over to keep the circuit open steadily. When power cuts off, fuel supply stops to shut down the engine.

Q: Can I use the listed interchange part numbers directly to replace this solenoid?

A: Yes, 1G577-60010 is fully interchangeable with 1G577-60011,1G577-60012, Bobcat 6689034,2536022 and Woodward 1503ES-12A5UC9S, SA-4561-T for direct replacement.

Q: What signs indicate a faulty fuel shutoff solenoid?

A: Common failure symptoms include engine fails to stop after power off, hard cranking on startup, unexpected engine cutout, or no reaction when activating the machine stop control.
