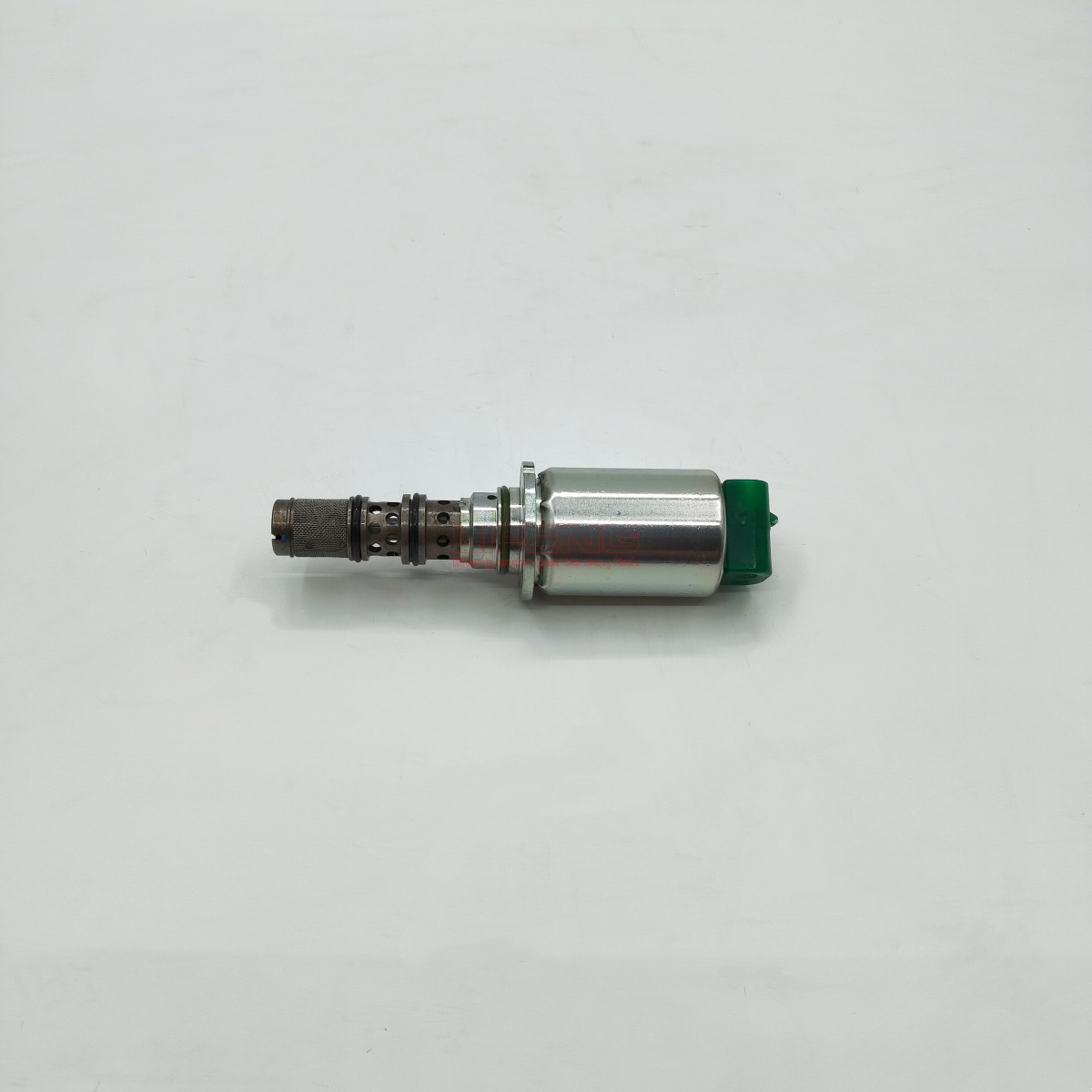

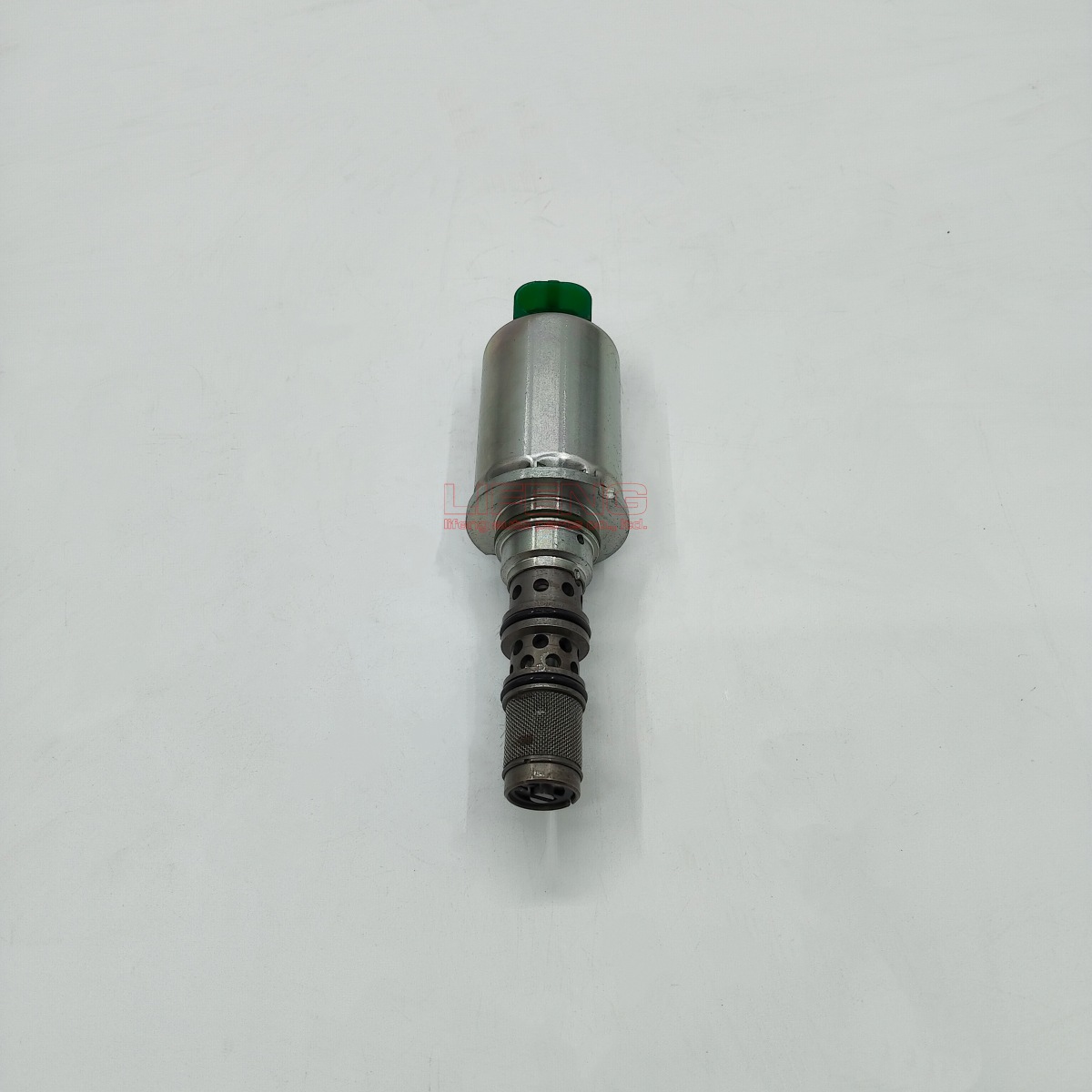

48055262 PWM Solenoid Valve for Case IH & New Holland Tractor Transmission 4WD PTO System
Product Overview
This aftermarket pulse-width modulation (PWM) solenoid valve, part number 48055262, acts as a proportional hydraulic and transmission electronic control component built for agricultural tractors. It precisely meters hydraulic oil flow to govern gear shifting, clutch engagement, 4WD activation and rear PTO operation, delivering smooth, responsive power transfer during field work, hauling and heavy implement tasks. Designed to endure harsh farm operating environments, this valve maintains stable performance across wide temperature ranges and resists vibration and pressure fluctuations common on farm machinery. It is a core hydraulic component fitted on over 150 CNH tractor models, covering both compact and mid-to-large size Case IH and New Holland tractors, and also compatible with selected IVECO industrial engine hydraulic modules. Multiple cross-reference part numbers are fully interchangeable for simplified parts replacement during maintenance.
Key Specifications
| Item | Details |
|---|---|
| OEM Number | 48055262 |
| Part Type | PWM Solenoid Valve |
| Control Signal | Pulse-Width Modulation (PWM) |
| Rated Power | 14 W |
| Coil Resistance (20℃) | 9.9 Ω |
| Rated Current Range | 100 – 750 mA |
| Outer Diameter | 37.8 mm |
| Overall Length | 5.18 in / 13.1 cm |
| Condition | New Aftermarket |
| MOQ | contact us |
FAQs
Q: What common failure symptoms show this PWM solenoid valve needs replacement?
A: You may notice rough or delayed gear shifts, failure to engage or disengage 4WD, PTO power cut-out, slipping clutch, or diagnostic error codes related to transmission hydraulic control.
Q: Which tractor models are compatible with 48055262 solenoid valve?
A: Case IH Farmall 40, 40B CVT, 45, 45B CVT, 45C, 50, 50B, 55C, 85C, 95C, 100C, 115C, 120C. New Holland T7000, T7010, T7020, T7030, T7040, T7050, T7060, Boomer 46D. Also fits selected IVECO industrial engine hydraulic modules.
Q: What cross reference part numbers work interchangeably?
A: New equivalent: 87739558, 87577678. Old part numbers: 5196873, 87719109, 87624294, 1931612, 5195038, 85195038, 87690667.
Q: What functions does this PWM solenoid control?
A: It precisely regulates hydraulic oil flow for transmission shifting, clutch engagement, 4WD switching and rear PTO system.

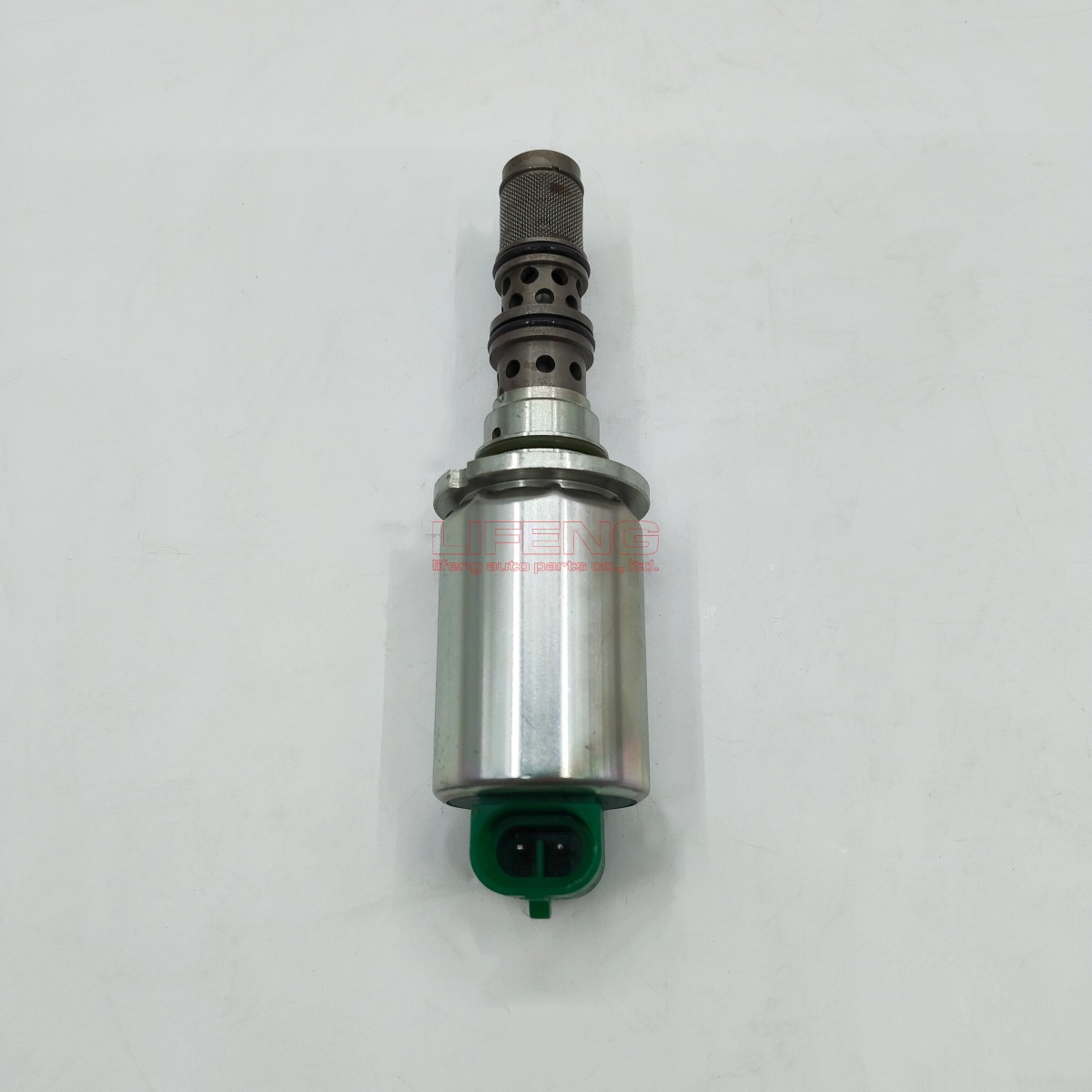

48055262-pwm-solenoid-valve-case-ih
