6686715 12V Fuel Shutoff Solenoid for Bobcat Deutz BF4M101F Engine Skid Steer Track Loader

Product Overview

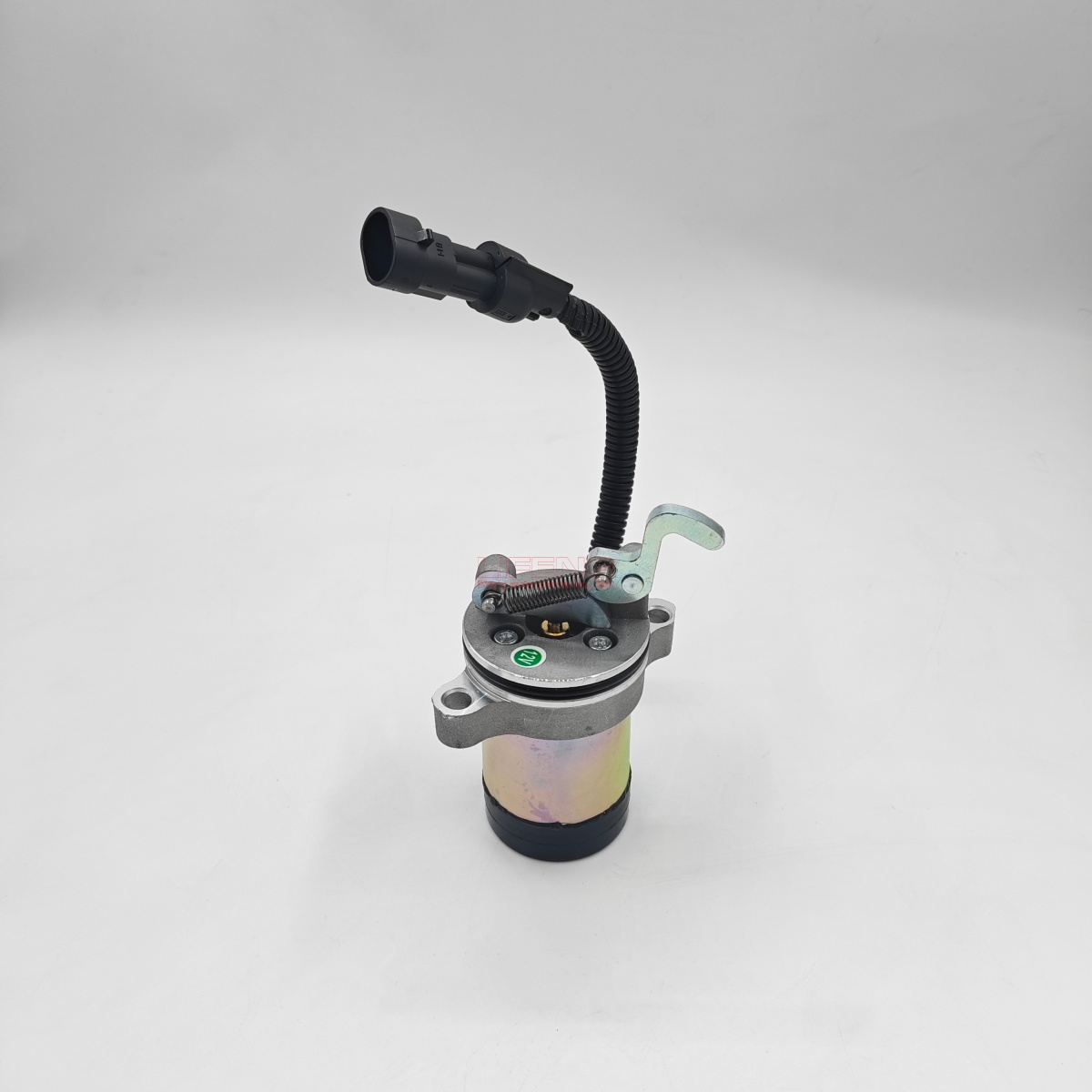

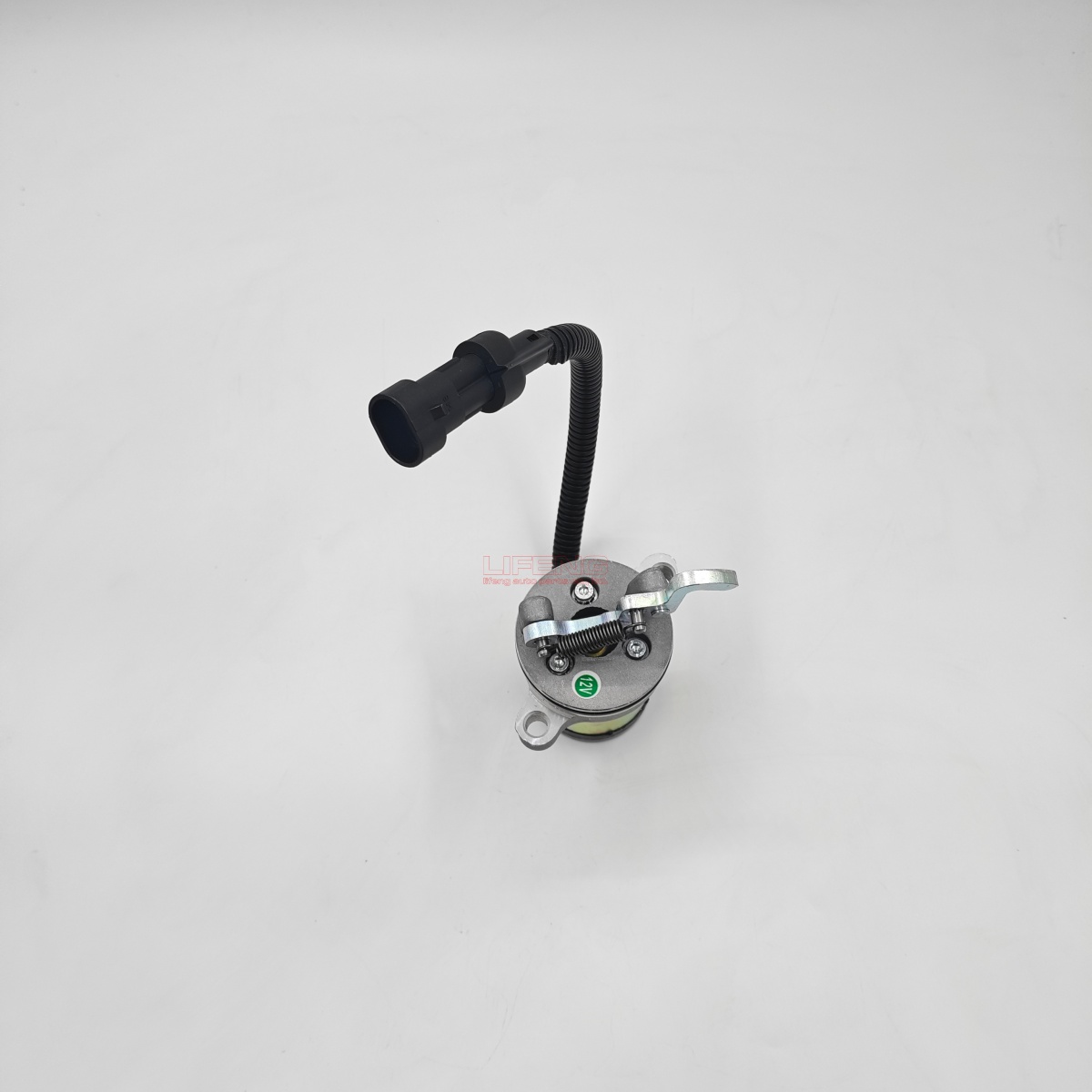

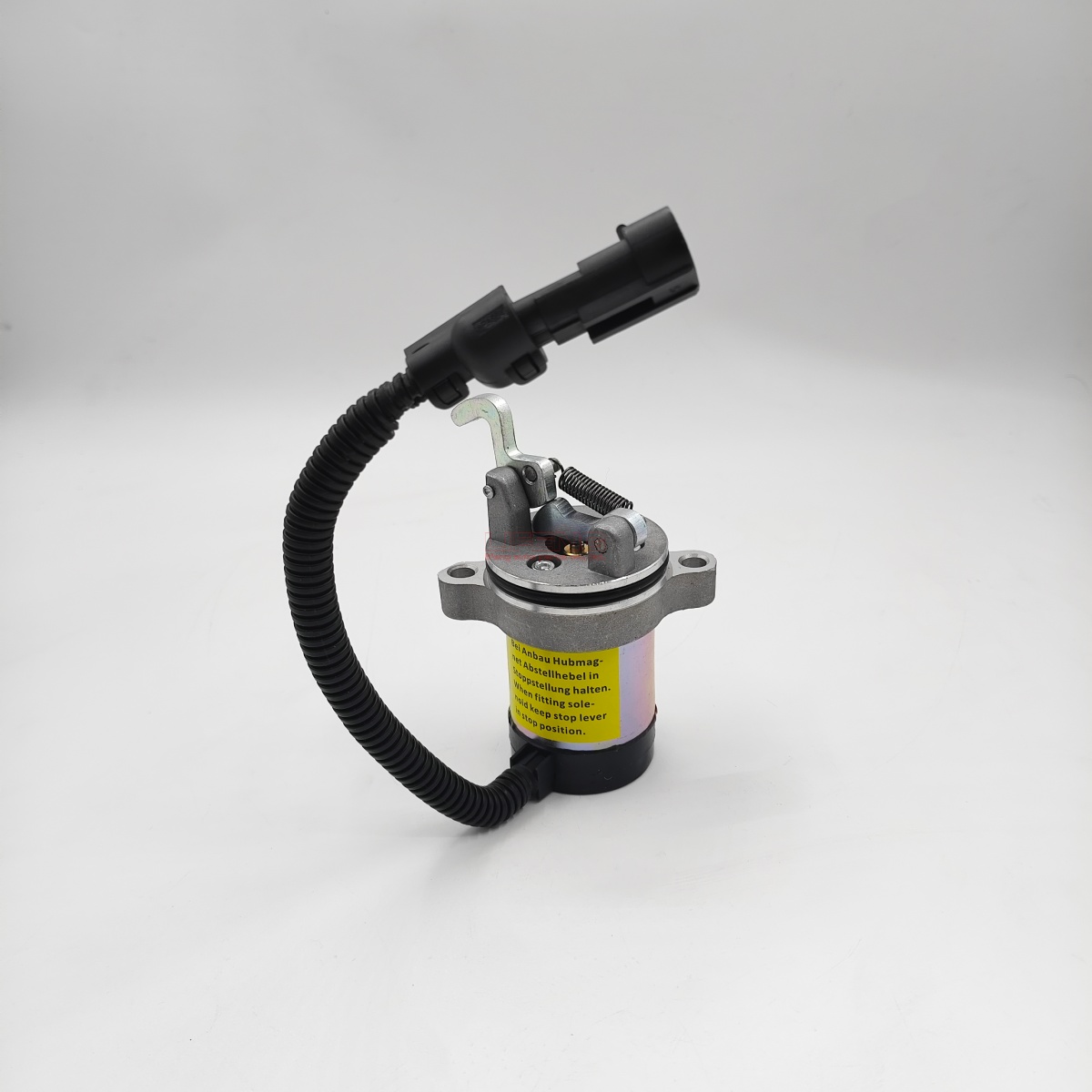

Part number 6686715 is a 12V fuel shutoff solenoid engineered for Bobcat mid-size and large machines powered by Deutz diesel engines. This valve cuts off the main fuel supply rapidly once the ignition key is turned off to achieve safe engine shutdown. It replaces the older Bobcat part number 6680121. Cross-reference Deutz part codes include 04272733, 0427-2956 and 04287583. For installation, the adapter harness 6686716 is commonly required. Always verify pin polarity before connection: terminal 1 is positive and terminal 2 is negative. Incorrect wiring will burn out the solenoid coil immediately. This component fits classic and M-series Bobcat equipment fitted with Deutz BF4M101F engines.

Key Specifications

FAQs

Q: What Bobcat machines fit 6686715 fuel shutoff solenoid?

A: It works for skid steer loaders 863, 873, 883, S250 (S250 requires serial number 520711001 and above); track loaders 864, T200; all-wheel steer loaders A220, A300, all equipped with Deutz BF4M101F engines.

Q: What parts are interchangeable with 6686715?

A: 6686715 supersedes the old Bobcat part 6680121. Matching Deutz equivalent part numbers are 04272733, 0427-2956 and 04287583.

Q: What installation precautions should I follow for this solenoid?

A: The adapter harness 6686716 is usually needed during replacement. Check pin polarity strictly before wiring: terminal 1 connects to positive, terminal 2 connects to negative. Wrong polarity will destroy the coil quickly.

Q: What symptoms indicate a faulty 6686715 fuel shutoff solenoid?

A: Two typical failure modes. The engine cannot start as the fuel passage stays closed. Or the engine keeps running after the ignition key is turned off, since the solenoid fails to cut fuel supply.

Q: Which engine does this 6686715 solenoid serve?

A: It is designed for Bobcat machines running Deutz BF4M101F diesel engines.
