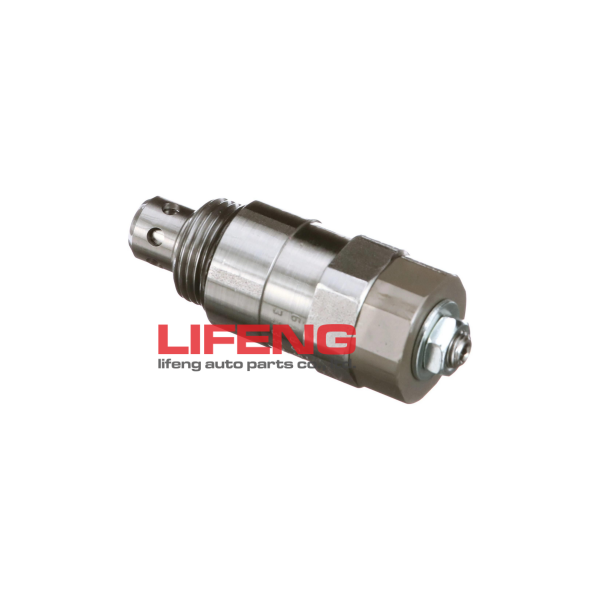

84296804 Hydraulic Pressure Relief Valve 230Bar Adjustable for CASE New Holland Backhoe Loader
Upgrade your Case machinery with this efficient solenoid valve, crafted for precision and durability. It provides accurate flow control, contributing to smoother operations and better fuel efficiency. The valve features a sturdy design with superior sealing to prevent leaks and withstand high-pressure conditions. Its compatibility and reliability make it an excellent replacement part for maintaining peak performance and extending the life of your equipment.
Product Overview
Part number 84296804 is a vital hydraulic main relief valve for heavy machinery CASE and New Holland under CNH Industrial Group. This high-pressure hydraulic control component comes factory preset at 230 Bar and features adjustable pressure settings. It governs the total working pressure inside the control valve block, preventing hydraulic system overload and protecting hydraulic pumps and cylinders from pressure damage. This pressure relief valve is normally installed as a built-in safety component for 6-spool control valve assemblies. It can be replaced with interchangeable CNH part number 47520559, with a net weight of approximately 0.395 kg.
Key Specifications
| Item | Details |
|---|---|
| OEM Number | 84296804 |
| Part Type | VALVE PRESSURE RELIE, 230 Bar, Adjustable |
| Interchange CNH PN | 47520559 |
| Net Weight | Approx. 0.395 kg |
| Mounting Position | Integrated safety relief part for 6-spool control valve block |
| Core Function | Regulate system pressure, avoid hydraulic overload, protect pump and cylinders |
| Condition | New Aftermarket |
| MOQ | contact us |
FAQs
Q: What machines does 84296804 pressure relief valve fit?
A: It is for CASE N series and SN series backhoe loaders, including CASE 580N, 580N EP, 580SN, 580SN WT and CASE 590SN.
Q: What cross reference part number can substitute 84296804?
A: CNH part 47520559 is interchangeable and serves as the upgraded replacement option.
Q: What are the typical failure signs of this 230Bar relief valve?
A: 1. Weak operation and sluggish movement: bucket, boom or front bucket stalls when digging hard ground, the system cannot build up rated 230Bar pressure and excess pressure drains back to tank prematurely.
2. Abnormally high hydraulic oil temperature: continuous micro overflow creates friction heat, making hydraulic oil hot and thin rapidly.
Q: What causes the pressure relief valve to malfunction?
A: Common failure triggers include fatigue degradation of internal spring, worn sealing surfaces, and spool stuck by tiny metal debris circulating in hydraulic oil.
Q: What is the function of this 84296804 relief valve in backhoe loader?
A: It controls the overall working pressure of the multi-way distribution valve, acts as a safety valve to limit peak pressure and safeguard the whole hydraulic circuit during heavy-duty digging and loading work.
84296804 Solenoid Valve For Case
