9971792 12V Fuel Shut-Off Solenoid for Case IH New Holland Fiat Bosch VE Injection Pump

Product Overview

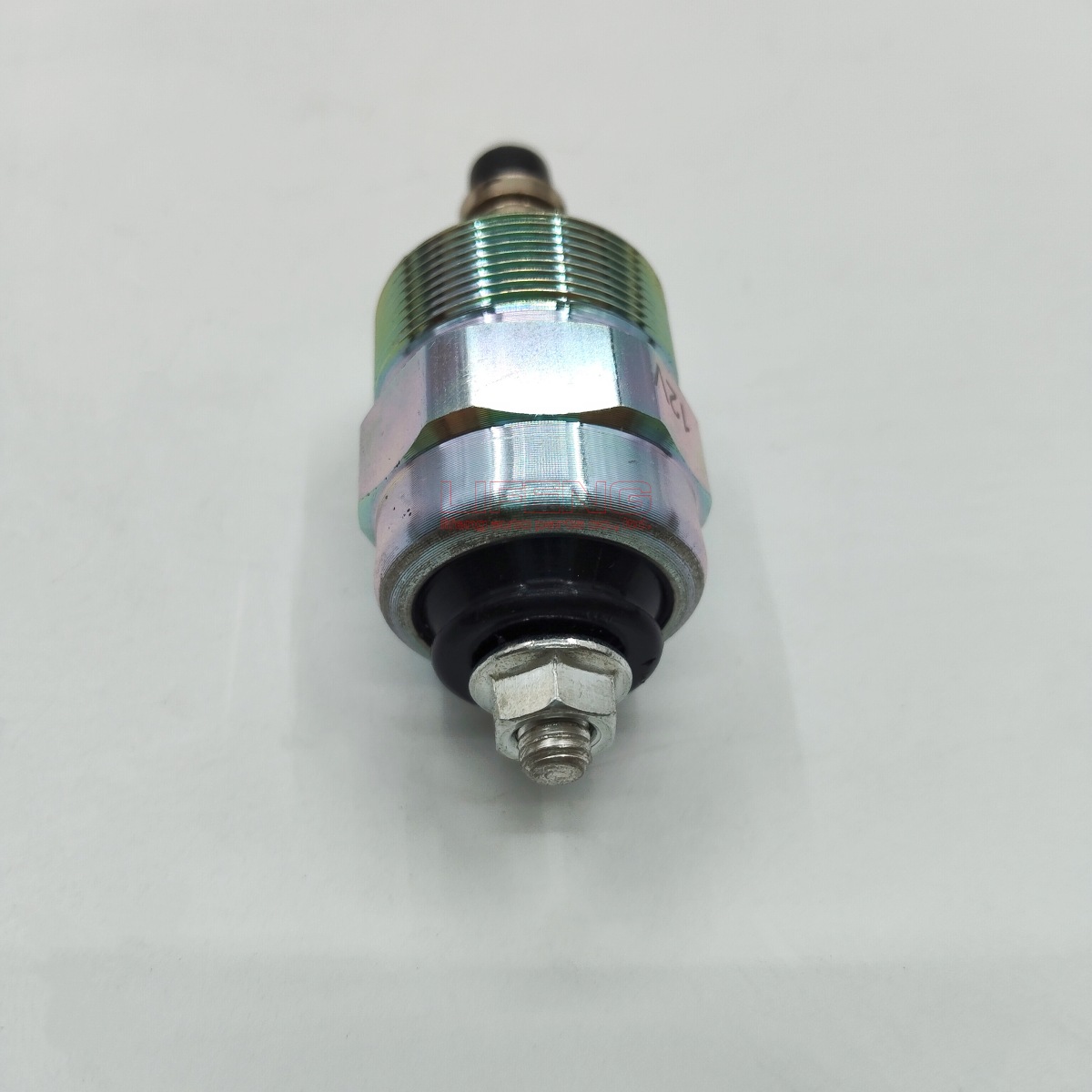

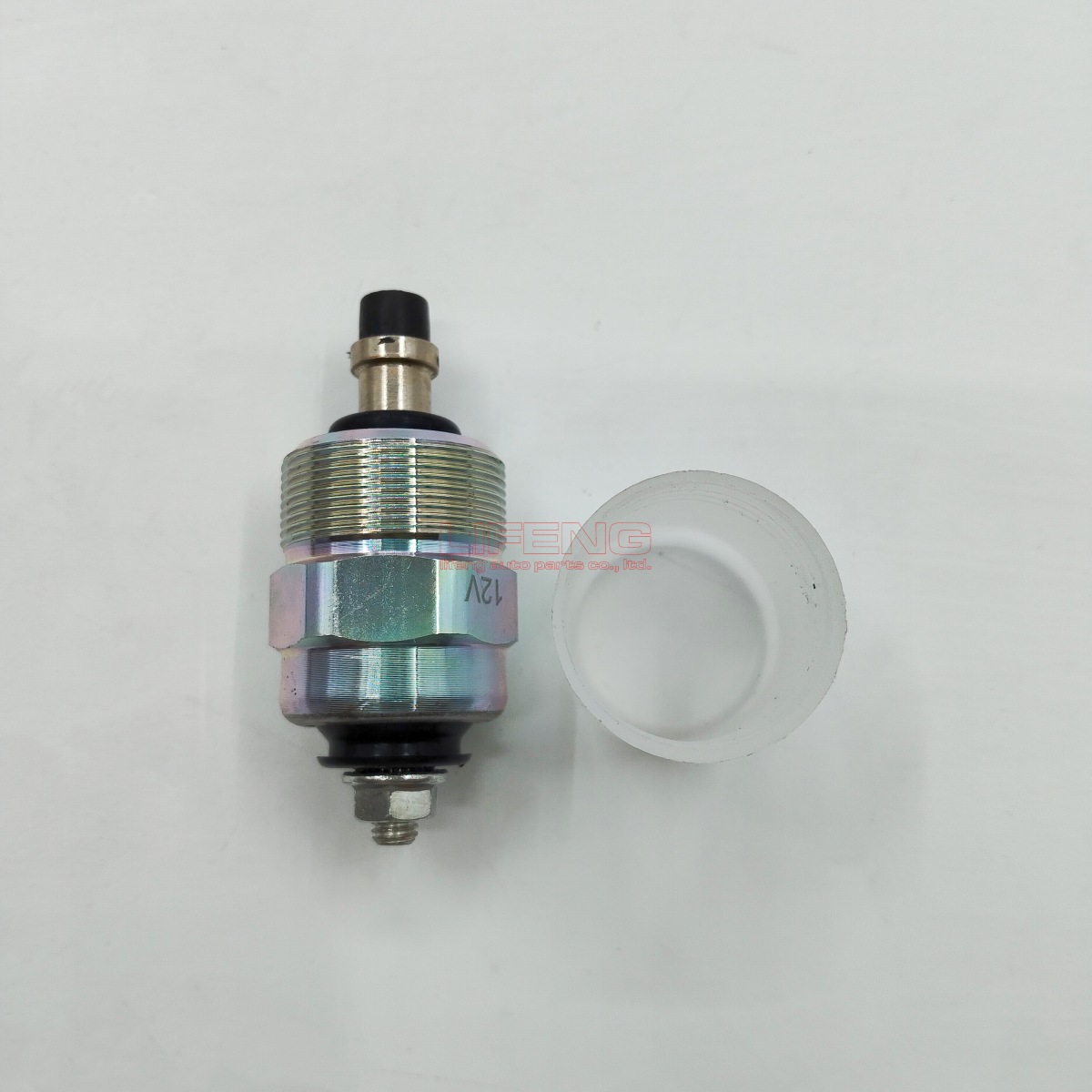

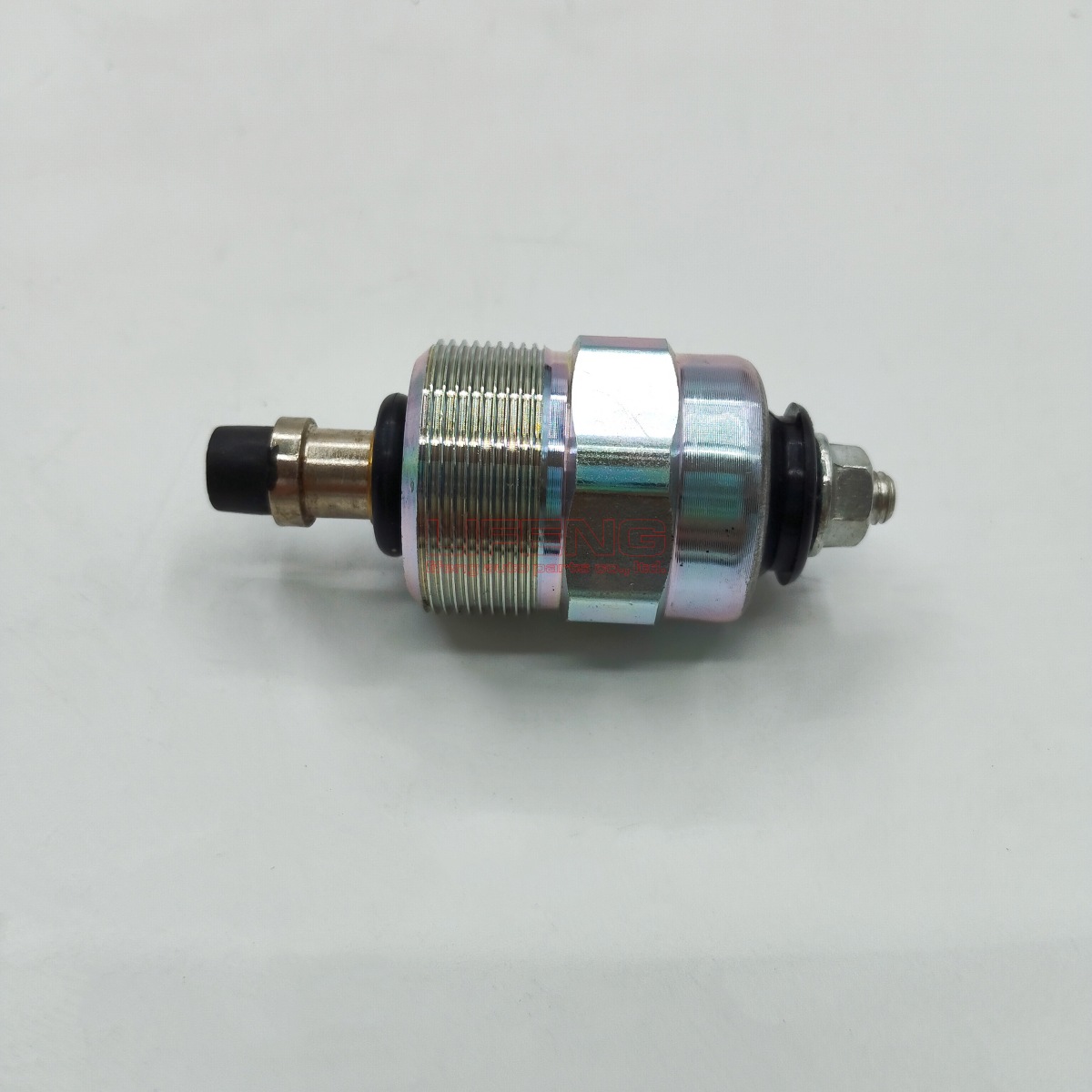

This aftermarket 9971792 fuel shut-off solenoid is a commonly replaced electrical component built for CNH agricultural and construction machinery. It mounts directly onto Bosch or VE-style diesel injection pumps, controlling fuel supply to the engine through electric on-off signals. When the ignition switches on, the solenoid energizes and opens the fuel path; once power cuts off, its internal spring resets to close the line for safe engine shutdown. Engineered to withstand dusty farm sites and heavy operating vibration, this shutoff valve delivers stable performance for long working hours. It supports a huge lineup of New Holland and Case IH equipment including tractors, skid steer loaders and backhoe loaders, and multiple cross-reference part numbers allow straightforward drop-in replacement during service and overhaul work.

Key Specifications

FAQs

Q: What typical failures happen with the 9971792 fuel shut-off solenoid?

A: Two main symptoms. The engine keeps running after the key is turned off, caused by varnish buildup locking the spool open. Or the engine cranks but won’t start, with no audible click from the solenoid when powered on, indicating burned coil.

Q: Which machines does this 12V shutoff solenoid fit?

A: New Holland tractors: TD75D, TD80D, TL70, TL80, TL90, TL100, TN55, TN65, TN70D, TN75, TT55, TT75. Case IH & New Holland skid steers: 40XT,60XT,70XT,75XT,85XT,90XT,95XT,1840,1845C,430,440,445,450,465. Also fits New Holland LB75 backhoe loader.

Q: What cross part numbers can replace 9971792?

A: 2852741, A77753, 8190393, J903575. These are fully interchangeable direct substitutes.

Q: How do I diagnose this fuel solenoid?

A: Check for 12V supply at the connector. If voltage exists but no movement or clicking sound, the coil is damaged and the solenoid needs full replacement.
