AXE17767 Hydraulic Pressure Relief Valve for John Deere Combine Header Lift System

Optimize your John Deere machine’s hydraulic systems with our advanced Valve. Manufactured to meet strict quality standards, it provides precise directional control and consistent performance under high pressure. The wear-resistant design offers improved longevity and stability, reducing the frequency of replacements. This valve helps enhance operational efficiency, decrease energy consumption, and ensure smoother equipment functionality. It’s an ideal upgrade for maintaining reliability and power in critical applications.

Product Overview

Part number AXE17767 is a core hydraulic main relief valve, also known as safety relief valve, built for John Deere large agricultural machinery, especially combine harvesters. Installed within the header lift hydraulic circuit of the combine control valve bank, it limits and regulates the maximum operating pressure of the hydraulic system. It absorbs violent hydraulic pulses generated when the header hits bumps or heavy loads, protecting hydraulic pumps and lift cylinders from pressure spikes. This high-spec original hydraulic component is factory calibrated for relief protection at 207 Bar or 220 Bar depending on machine configuration. It precisely manages fluid pressure shifts during heavy-duty cycles and load transfers, stabilizes hydraulic flow and suppresses sudden high-pressure impacts inside the hydraulic circuit.

Key Specifications

FAQs

Q: What John Deere machines are compatible with AXE17767 relief valve?

A: It fits John Deere S series combines: S540, S550, S660, S670, S670HM, S760, S770 and selected S7600/S7700 global models. Also works for T and W series combines T550, T560, T660, T670, W540, W550, W650, W660. Matches 6.8L (6068) and 9.0L (6090) turbo diesel engines.

Q: What causes failure of AXE17767 header relief valve?

A: Failures mainly come from fatigue and weakening of the precision internal spring, or the spool stuck open by metal debris mixed in hydraulic oil.

Q: What are the common symptoms of a faulty AXE17767 relief valve?

A: 1. Weak or no header lifting: header lifts slowly or cannot rise at all, hydraulic oil drains back to tank before reaching rated working pressure.

2. Header drift down: the header slowly sinks by its own weight after lifting and cannot hold position.

3. No cushioning over rough ground: loss of pressure damping causes harsh jolts, risking damage to header suspension brackets.

Q: What is the main purpose of this combine relief valve?

A: It safeguards the header lift hydraulic circuit, controls peak pressure and dampens shocks during field harvesting operations.

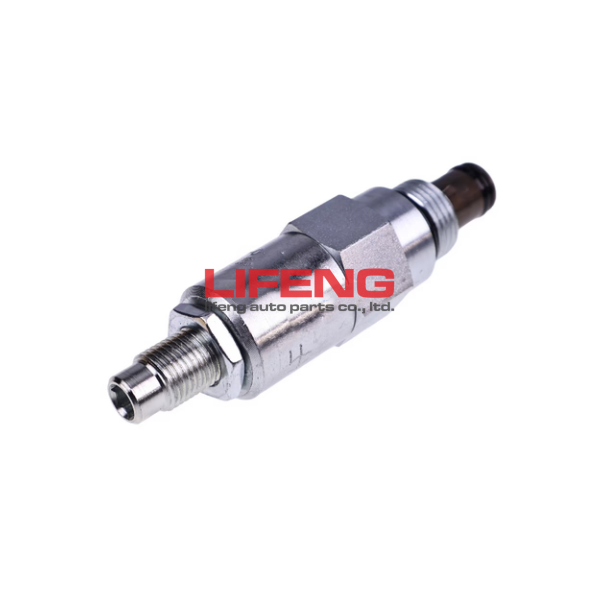

AXE17767 Valve For John Deere
