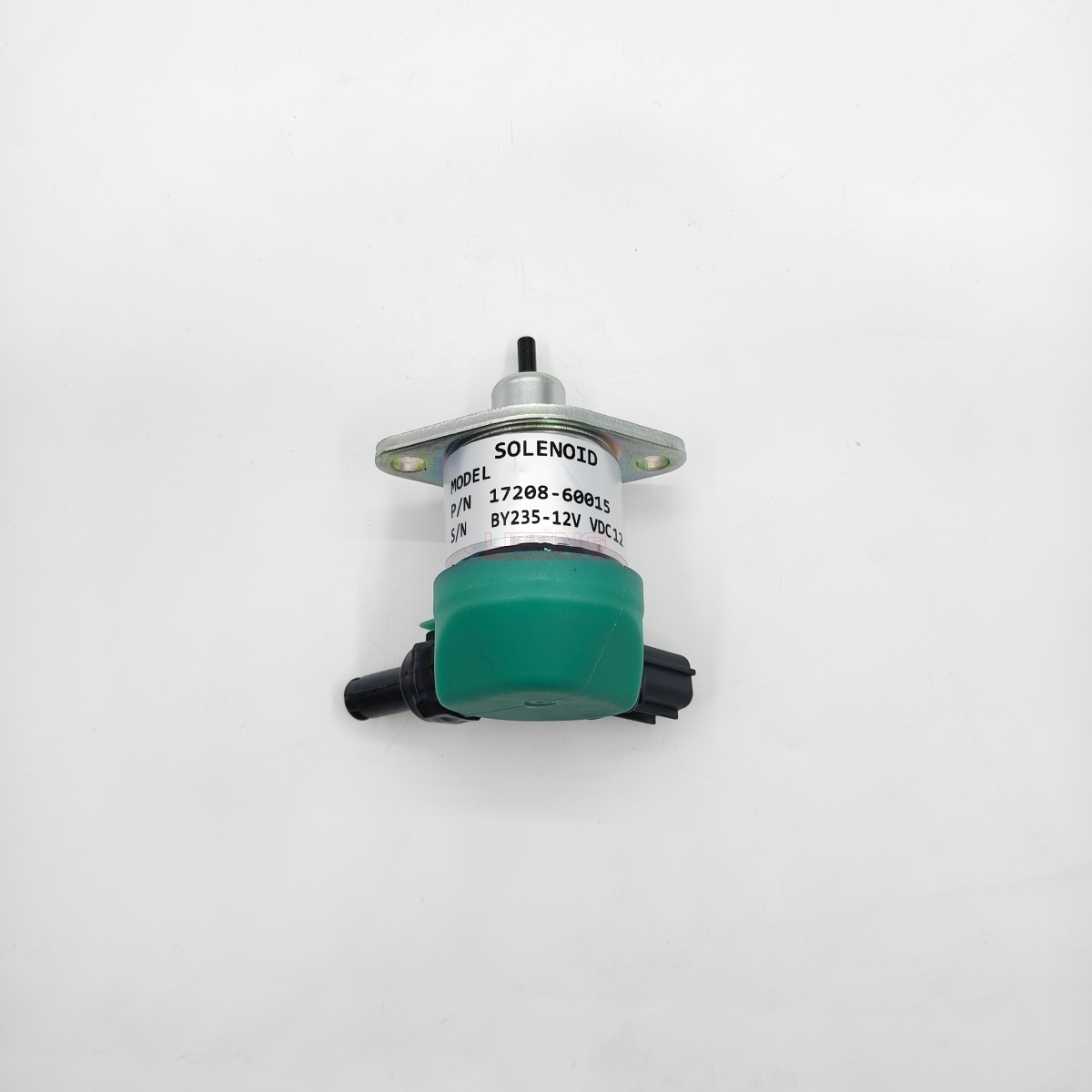

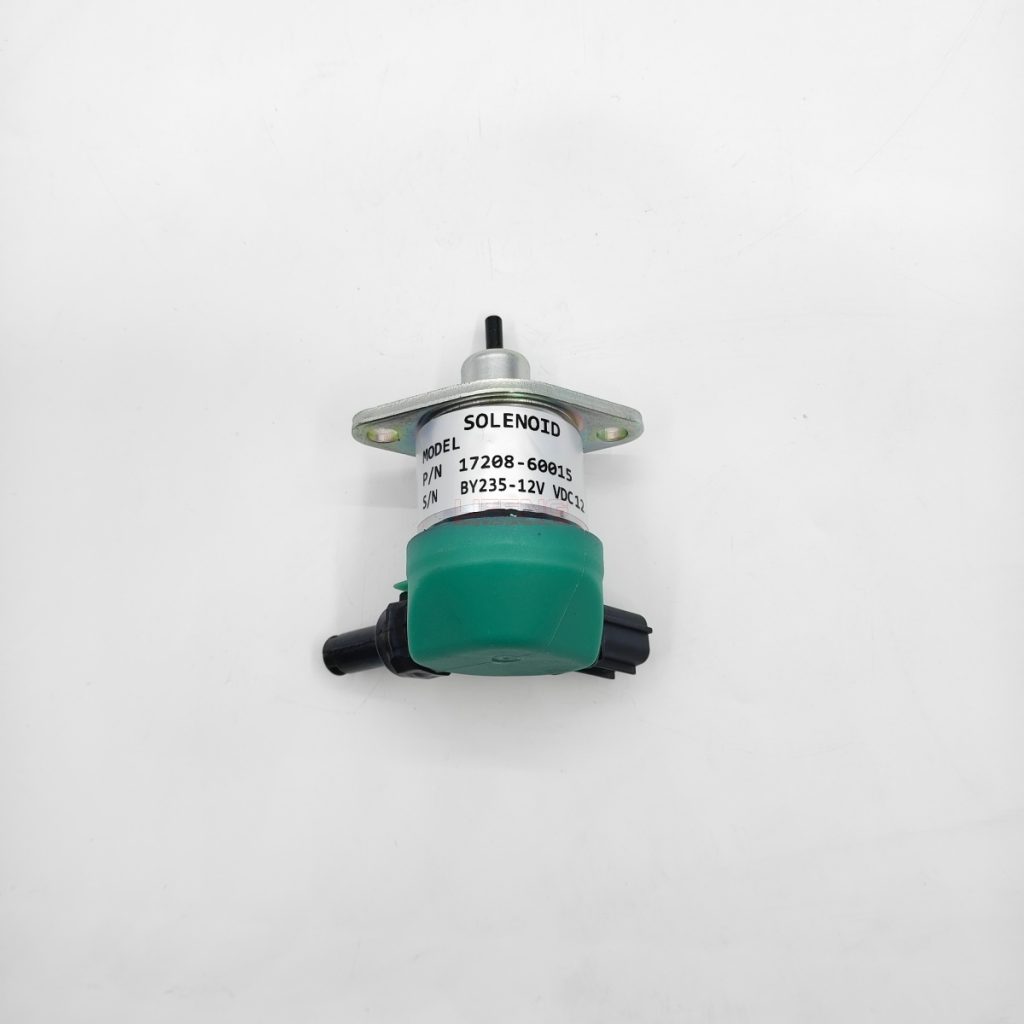

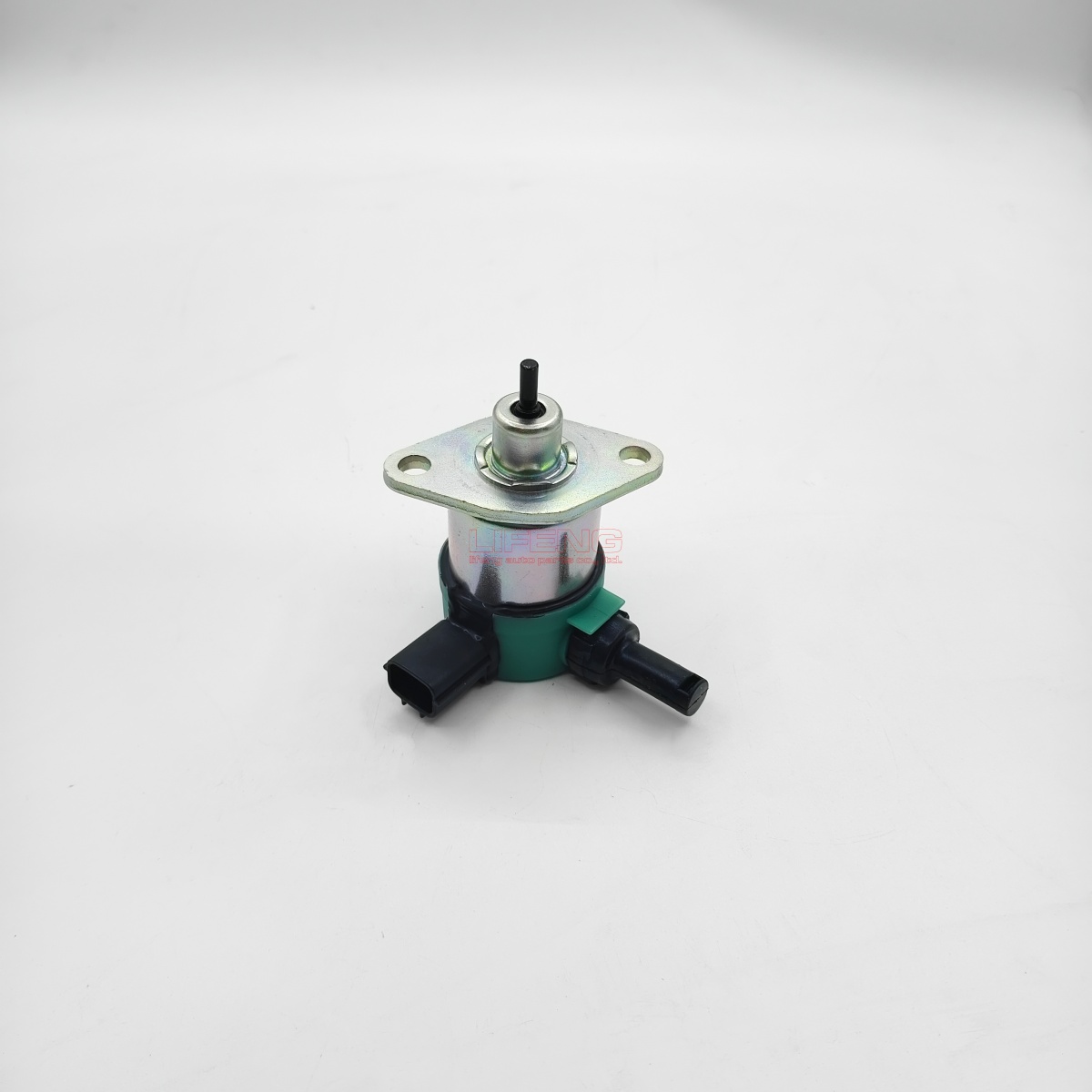

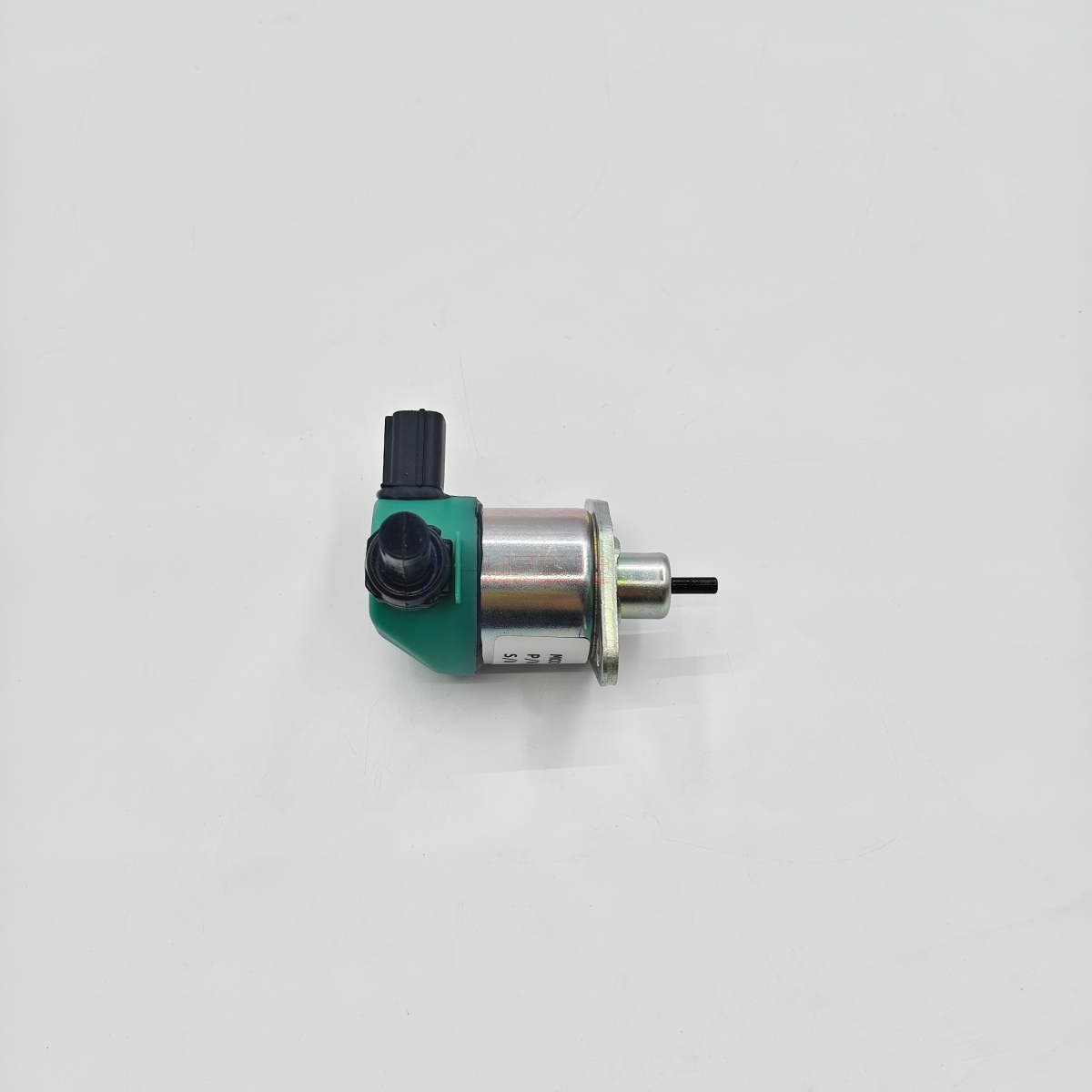

12V Fuel Shutoff Solenoid 17208-60015 for Kubota D722 D782 D902 D905 D1005 D1105 V1205 V1305 V1505 Engine

Product Overview

This 12V fuel shut down solenoid, part number 17208-60015, is a critical engine stop component built for Kubota diesel engines. It controls the fuel supply to safely shut down the engine once receiving stop signals. Designed as normally closed type, it maintains fuel flow when powered on and instantly cuts off fuel to stop the engine when power is disconnected.

This solenoid comes with a 2-pin blade terminal connector for simple installation. It can replace multiple OEM part numbers, fitting a wide range of Kubota engines mounted on tractors, excavators, generators, skid steers and lawn mowers. It is engineered to match the original performance to restore your machine’s stop function reliably.

Key Specifications

FAQs

Q: What engines does this 17208-60015 fuel shutoff solenoid fit?

A: It is compatible with Kubota D722, D782, D902, D905, D1005, D1105, V1205, V1305, V1505 diesel engines.

Q: What machines can use this fuel stop solenoid?

A: It fits Kubota BX, ZD, RTV900, B21, B26, B2320, B2620, B3030 tractors and utility vehicles. It also works on Bobcat, Genie, Bomag, Ditch Witch machines equipped with the listed Kubota engines.

Q: What is the working principle of this normally closed solenoid?

A: It keeps the fuel circuit open when energized. When power is cut off or stop signal triggers, it immediately closes the fuel path to stop the engine securely.

Q: Can I replace with those cross-reference part numbers directly?

A: Yes, 17208-60015 is interchangeable with 17208-60010,17208-60012,17208-60016,17208-60017,FSL90-0020 and 17454-60010 for direct swap.

Q: What common symptoms show the old fuel shutoff solenoid fails?

A: Typical issues include engine cannot shut down after turning off key, hard starting, engine stalls unexpectedly, or no response when triggering the stop control.
