If you’re replacing a solenoid valve on a skid steer loader, the biggest risk isn’t finding a valve that fits — it’s finding one that looks right but is wrong on voltage, connector type, or sealing material. Getting any of these wrong means a valve that either won’t actuate, burns out on first use, or fails again within weeks. This guide walks through the five things to check before you buy, the most common ordering mistakes, and how to confirm you’re getting the correct part the first time.

Why Skid Steer Solenoid Valves Differ From Excavator Valves

Skid steer loaders run smaller, higher-cycling hydraulic systems than excavators — the valves switch more frequently as the operator shifts between loader arm, attachment, and auxiliary hydraulic functions. That means skid steer solenoid valves are often rated for a different duty cycle and, depending on the model, a different voltage or connector standard than the excavator valves in the same manufacturer’s lineup. Assuming a solenoid valve that fits your excavator will also fit your skid steer — even from the same brand — is one of the most common reasons buyers order the wrong part.

5 Things to Check Before Buying

1. Voltage Rating (12V vs 24V)

This is the single most common mismatch. Skid steer electrical systems are typically 12V or 24V depending on the model and year, and a solenoid coil rated for the wrong voltage will either fail to actuate or burn out almost immediately once powered. Always confirm your machine’s system voltage before ordering — don’t assume based on machine size or brand alone.

2. Connector / Plug Type

Even when voltage and resistance match, a mismatched connector housing or pin count is one of the most common reasons for returns. Deutsch, AMP, and Packard-style connectors all look similar in photos but aren’t interchangeable. If possible, match your old connector against the listing photos, or provide a close-up photo when ordering.

3. Coil Resistance Spec

Coil resistance (measured in ohms) should match the OEM specification for your exact model. A coil with the wrong resistance can undercharge the valve so it won’t fully shift, or overheat under continuous operation.

4. Sealing Material (NBR vs Viton vs Others)

Seals are often the overlooked variable. NBR (nitrile) seals work fine for standard mineral hydraulic oil in moderate climates, but machines running in high-heat environments, or using biodegradable hydraulic fluids, typically need Viton or another chemical-resistant seal material. Using the wrong seal compound shortens the valve’s service life even if every other spec matches.

5. OEM Part Number Cross-Reference

The most reliable way to avoid all of the above is working backward from your original part number rather than forward from a generic description. If you’re not sure how to locate or confirm your part number, see our guide on How to Find the Right Solenoid Valve Part Number for JCB, CAT, Bobcat, John Deere, Case & New Holland.

Skid Steer Brand Compatibility Notes

Voltage, connector style, and resistance specs vary not just by brand but by model year and ECU generation, so treat any general chart as a starting point — not a substitute for confirming against your machine’s OEM part number. As a general pattern across the major skid steer brands:

Brand	General Voltage Pattern	Notes
Bobcat	12V on most compact models	Connector style has changed across generations — verify against your current plug
CAT	12V or 24V depending on model	Larger skid steer models more often run 24V systems
John Deere	12V on most compact models	Agricultural crossover models may differ from construction-specific models
Case	12V or 24V depending on model	Confirm against chassis-specific documentation
New Holland	12V on most compact models	Shares some hydraulic architecture with Case; still verify individually

Always confirm against your machine’s specific model and serial number — voltage and connector specs can change even within the same model line across production years.

OEM vs Aftermarket: Which Should You Choose for a Skid Steer?

Both can work well for a skid steer solenoid valve replacement, but the right choice depends on your operating environment, budget, and how critical uptime is for that machine. We cover the full trade-offs — including when aftermarket is a smart choice and when it isn’t — in OEM vs Aftermarket Solenoid Valve Coils: What’s the Difference?

Common Mistakes When Buying a Replacement Solenoid Valve

• Ordering by appearance alone.Two valves can look nearly identical in a photo and still have different voltage, resistance, or thread specs.
• Ignoring connector orientation and cable length.A valve that fits electrically but has the wrong cable length or a connector facing the wrong direction can make installation far harder than it needs to be.
• Guessing on voltage.Installing a 12V coil on a 24V system (or vice versa) is one of the fastest ways to burn out a brand-new part.
• Skipping the old part comparison.Even when you know the make and model, physically comparing the new valve against the old one before installation catches most mismatches before they become a problem.

How to Confirm You’re Ordering the Right Part

Before placing an order, it helps to have on hand:

• Your machine’s exact model and serial number
• The OEM part number, if visible on the old valve or in your service documentation
• A photo of the old valve and connector, if the part number isn’t legible

If you’re not sure which of these you have or how to find them, our team can help confirm the correct part from a photo or serial number — get in touch here and we’ll match it against the correct cross-reference before you order.

Related reading: How to Choose the Right Solenoid Valve for Your Excavator

If your JCB 3CX or 4CX has thrown a fault code and you suspect a solenoid valve is behind it, this guide breaks down how JCB’s diagnostic system displays these codes, what the solenoid-related codes typically mean, and the steps to confirm whether the coil itself — or something else in the circuit — is causing the problem.

Note: Fault code numbering can vary between ECU generations (Tier 3, Tier 4, Stage V) and machine serial number ranges. Always confirm the exact code against your machine’s diagnostic tool or JCB service documentation before ordering parts — this guide explains the code logic and common failure patterns, not a single universal list.

How JCB Fault Codes Work

JCB machines built from the mid-2000s onward use an electronic control system that continuously monitors solenoids, sensors, and actuators across the hydraulic, engine, and transmission systems. Depending on the model year and ECU generation, faults appear in one of two ways:

• Older/Tier 3 machines: a numeric code (often 3 digits) shown on the dashboard alongside a short abbreviated description, e.g. “221 SLW BRK.”
• Newer Tier 4/Stage V machines: a longer alphanumeric code similar to an automotive OBD-II format (e.g., P0xxx or Exxx), viewable on the digital display or pulled via a diagnostic scanner.

On most 3CX/4CX models, the diagnostic port is a 9-pin connector located in the cab, typically under the seat or behind the side console panel.

Each fault code generally falls into one of two electrical fault types:

• Open circuit– the ECU detects no current flow, usually pointing to a broken wire, corroded connector, or a burned-out coil winding.
• Short circuit– the ECU detects excess current draw, usually pointing to damaged wire insulation, water ingress, or an internally shorted coil.

Common Solenoid-Related Fault Categories on 3CX/4CX

Rather than memorizing exact digits (which shift between software versions), it’s more useful to know which functions are commonly flagged. On the JCB platform, solenoid-related diagnostic codes typically cluster around these systems:

Function	What the Solenoid Controls	Typical Symptom When Faulted
Max flow / pump control solenoid	Regulates hydraulic pump output flow	Sluggish or jerky hydraulic response
Slew brake / slew shut-off solenoid	Controls slew (swing) braking and lockout	Slew drifts, won’t hold position, or won’t move at all
Travel/shift solenoid	Controls travel speed range shifting	Machine stuck in one gear range, harsh shifting
Throttle solenoid	Controls engine throttle actuation	Engine won’t rev, stuck at idle or high RPM
Boom priority/boom speed solenoid	Regulates boom function priority and speed	Boom moves too fast/slow, uneven function priority
Hydraulic fan solenoid	Controls cooling fan drive	Overheating, fan running constantly or not at all

If your fault code display references any of these functions, it’s very likely tied to a solenoid valve or its wiring rather than a purely mechanical issue.

Fault Code Doesn’t Always Mean a Bad Coil

This is the part operators most often get wrong: a solenoid fault code confirms an electrical fault in that circuit — not necessarily that the coil itself has failed. In practice, the fault can come from:

• A corroded or loose connector pin at the solenoid plug
• Chafed wiring insulation from vibration or heat exposure
• Moisture ingress into the connector housing
• The coil winding itself being open or shorted

Skipping straight to a coil replacement without checking the wiring is one of the most common reasons operators end up replacing a solenoid coil and still seeing the same fault code afterward.

Step-by-Step Diagnostic Process

1. Record the code, then clear it.Note the exact code/abbreviation shown, then clear the fault (many minor codes can be reset by disconnecting the battery for about 30 minutes; emissions-related derate codes usually need a JCB-compatible scan tool).
2. Check if the code returns.Run the machine through the affected function. If the code reappears immediately, the fault is active, not historic.
3. Test coil resistance.Disconnect the solenoid connector and measure resistance across the coil terminals with a multimeter. Compare against the OEM spec for that valve (typically in the low ohms range for most hydraulic solenoids) — a reading of zero or infinite ohms usually confirms a bad coil.
4. Check supply voltage at the connector.With the connector still disconnected and ignition on, verify the ECU is sending the expected voltage to the circuit. No voltage points to a wiring or ECU-side issue rather than the coil.
5. Inspect the connector and harness.Look for corrosion, bent pins, or chafed insulation along the harness run, particularly near pivot points and cable ties.
6. Reconnect and retest.If the coil tests within spec and the harness looks clean, the issue may sit further upstream (ECU driver circuit) and is worth having checked by a dealer or qualified technician.

Clearing and Resetting Codes

Most non-emissions solenoid fault codes clear automatically once the underlying issue is fixed and the machine completes a normal operating cycle. If a code persists:

• Disconnect the battery for 30 minutes to force an ECU reset (works for many minor codes).
• Emissions-related “Derate” codes typically require a JCB Service Master tool or compatible diagnostic scanner to clear properly, since the ECU stores them as confirmed faults rather than transient errors.

When to Replace the Solenoid Coil

If coil resistance is out of spec, the connector and harness test clean, and supply voltage is present but the coil still doesn’t actuate, replacement is the next step. At that point the real decision is sourcing the right part — see our guides on OEM vs Aftermarket Solenoid Valve Coils and How to Find the Right Solenoid Valve Part Number for JCB, CAT, Bobcat, John Deere, Case & New Holland to make sure you order the correct coil the first time.

Related reading: Why Excavator Solenoid Valve Fails: 7 Root Causes · Symptoms of a Bad Hydraulic Solenoid Coil · How to Test an Excavator Solenoid Valve



If you’re sourcing a replacement solenoid valve for JCB, Caterpillar (CAT), Bobcat, John Deere, Case, or New Holland equipment, you’ve probably run into the same problem: each brand uses a completely different part numbering system. The same type of valve can look like a totally different code depending on the manufacturer, which makes it easy to search for the wrong part — and order the wrong one.

This guide covers:

• How part numbers are structured across these six brands
• How to pull accurate identifying information from your old valve or machine plate
• The most common mistakes buyers make when cross-checking part numbers
• What to do when you can’t find a match

Why the Numbering Systems Are So Different

In construction and agricultural equipment, almost every OEM runs its own parts coding system. This isn’t an oversight — each manufacturer’s parts management system was built independently over decades, and there’s no industry-wide standard tying them together. That’s also why a single “universal cross-reference table” is hard to produce responsibly: it’s not that the data hasn’t been compiled, it’s that the underlying logic genuinely doesn’t map across brands.

Knowing the general format for each brand at least helps you figure out which manufacturer a part belongs to before you start searching:

JCB JCB part numbers are typically written in two segments separated by a slash, e.g. 25/xxxxxx, 716/xxxxxx, 928/xxxxxx. The first segment usually indicates a broad parts category (the “25” series commonly appears on hydraulic valve components), and the second is the specific item number. You’ll sometimes see the same number written without the slash (e.g. 25xxxxxx) — it’s the same part.

CAT (Caterpillar) CAT electrical and solenoid components are often labeled with an alphanumeric part number, and the packaging frequently shows both the CAT part number and the original manufacturer’s number from whichever component supplier produced it (Bosch and Parker are common OEM suppliers for hydraulic components in CAT equipment). If a supplier only gives you the component manufacturer’s code, ask for the matching official CAT part number too — otherwise you may not be able to look it up in CAT’s own parts catalog later.

Bobcat Bobcat electrical part numbers are usually 7 digits, with letter suffixes on some older models to indicate a revision. Bobcat updates its lineup fairly frequently, so the same valve position on the “same model” can carry a different part number depending on the serial number range — the serial number matters more than the model name alone.

John Deere Common prefixes include AT, RE, and TY (e.g. ATxxxxx, RExxxxx), and different prefixes generally correspond to different internal parts classification systems (John Deere’s agricultural and construction lines don’t always follow identical prefix conventions). John Deere’s official parts catalog typically requires the machine’s serial number (PIN) to return an accurate match — this is more strictly enforced than with some other brands.

Case Case’s agricultural line (Case IH) and construction line (Case Construction) don’t share one unified parts system, even though both fall under the same parent company. Before cross-checking a part number, confirm which product line the customer’s machine belongs to, or you risk searching the wrong catalog entirely.

New Holland New Holland and Case both sit under CNH Industrial, and some underlying components — including certain solenoid valves — are shared between the two brands. That said, shared ownership doesn’t automatically mean parts are interchangeable. Whether a specific part is actually shared should be confirmed against the part number itself, not assumed from the brand relationship.

The 3-Step Method for Cross-Checking a Part Number

Step 1: Start with the machine, not the old part

It’s tempting to just read off the number stamped on the old valve, but that part may not be original equipment, or it may have been swapped at some point during the machine’s life — meaning the number on it doesn’t necessarily match what should currently be installed. A more reliable sequence:

1. Find the machine’s identification plate (usually inside the cab, on the frame, or near the engine compartment) and record the full model name and serial number / PIN
2. Then read the number stamped or labeled on the old valve itself as supporting information
3. Send both pieces of information to your supplier together — this is far more reliable than either one alone

Step 2: Pay attention to serial number ranges, not just the model name

Within the production run of a single model — say, a particular generation of JCB 3CX or a John Deere excavator — the solenoid valve part number often changes partway through, due to a supplier switch, a design revision, or an emissions-related electrical update. So the model name alone isn’t enough to determine the correct part; the serial number range is usually what actually decides it.

Step 3: Send photos, not just text

If you still have the old part, photograph these angles before sending it to a supplier for confirmation:

• The number stamped or laser-etched on the valve body (often on the side or top)
• Any label on the solenoid coil itself (on split-design valves, the coil and the valve body may carry separate numbers)
• A close-up of the port/flange connection type (threaded and flanged connections are not interchangeable)
• An overall shot with something for scale (a coin or hand next to the part helps with size reference)

Text descriptions are easy to get wrong — smudged stamps, grease covering digits, or simple transcription errors. Photos cut that risk down significantly.

Common Mistakes to Avoid

Assuming “same brand, same series” means interchangeable Even two machines with adjacent serial numbers can end up with different part numbers if there was a design change (an engineering change notice, or ECN) partway through the run. Brand and series name narrow things down, but they don’t replace checking the actual serial number.

Ordering based on a keyword search alone A lot of part-number information online comes from third-party parts sellers who compiled it themselves, and accuracy varies a lot — some of it has simply been copied from one site to another. Treat search results as a lead, not a confirmed answer, and verify against the machine’s serial number before ordering.

Overlooking voltage A 12V and a 24V version of the same valve can look identical — same housing, same mounting — but they are not interchangeable. Always confirm the voltage spec when cross-checking a part.

If You Can’t Find a Match

With six brands, multiple product lines, and decades of model years in play, it’s normal to hit a part number you can’t immediately place — that doesn’t mean no match exists. In that situation, the fastest path is usually to pull together the machine’s ID plate info, the serial number range, and photos of the old part, and send it to a supplier who works with these brands regularly — that’s typically quicker and more accurate than continuing to search on your own.

If you need to cross-check a solenoid valve part number for JCB, CAT, Bobcat, John Deere, Case, or New Holland equipment, send us the machine model, serial number, and a photo of the old part — we’ll confirm the correct part number within 3 business days.



When a solenoid valve coil fails, procurement and maintenance teams face a familiar decision: replace it with an Original Equipment Manufacturer (OEM) part, or switch to an aftermarket alternative. The choice affects more than just the purchase price — it impacts equipment reliability, lead times, warranty coverage, and total cost of ownership over the life of the system.

This guide breaks down the real differences between OEM and aftermarket solenoid valve coils, so you can make the right call for your application, budget, and risk tolerance.

What Is an OEM Solenoid Valve Coil?

An OEM solenoid valve coil is manufactured by — or under direct specification from — the original equipment maker that produced the valve or system it’s installed in. These coils are built to match the exact electrical, dimensional, and performance specifications of the original part, which means fit and function are effectively guaranteed.

OEM coils typically come with manufacturer warranties and are tested against the same quality benchmarks used in the original production run.

What Is an Aftermarket Solenoid Valve Coil?

An aftermarket solenoid valve coil is produced by a third-party manufacturer rather than the original equipment maker. These coils are designed to be compatible with specific valve models or series, often at a lower price point than OEM equivalents.

Quality varies significantly across the aftermarket space. Some manufacturers use comparable materials and tight tolerances; others cut corners on insulation, winding consistency, or coil housing durability to hit a lower price.

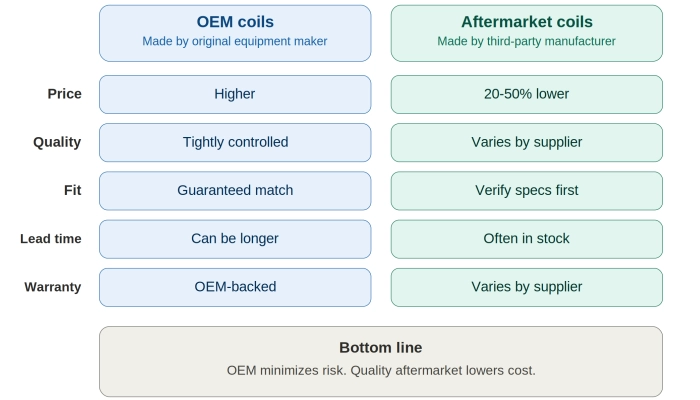

Key Differences Between OEM and Aftermarket Coils

Factor	OEM Coils	Aftermarket Coils
Price	Generally higher	Typically 20–50% lower
Quality consistency	Standardized, tightly controlled	Varies by supplier
Fit & compatibility	Guaranteed match	Usually compatible, but verify specs
Lead time / availability	Can be longer, especially for older equipment	Often more readily stocked
Warranty	Backed by original manufacturer	Varies; some offer comparable coverage
Certifications	Matches original equipment standards	Should be verified per supplier

OEM Coils: Pros and Cons

Advantages

• Exact fit and performance match to original specifications
• Manufacturer-backed warranty and accountability
• Lower risk of compatibility or installation issues
• Often required to preserve warranty on the broader system

Drawbacks

• Higher unit cost
• Longer lead times for discontinued or specialty equipment
• Limited supplier options can affect pricing leverage

Aftermarket Coils: Pros and Cons

Advantages

• Lower cost, especially valuable for high-volume replacement needs
• Often better stock availability and faster shipping
• More supplier choice, which can improve negotiating position
• Quality aftermarket coils can match OEM performance for many applications

Drawbacks

• Quality varies between manufacturers — due diligence is required
• May void OEM warranty on the host equipment
• Verifying electrical specs (voltage, resistance, duty cycle) and certifications falls on the buyer

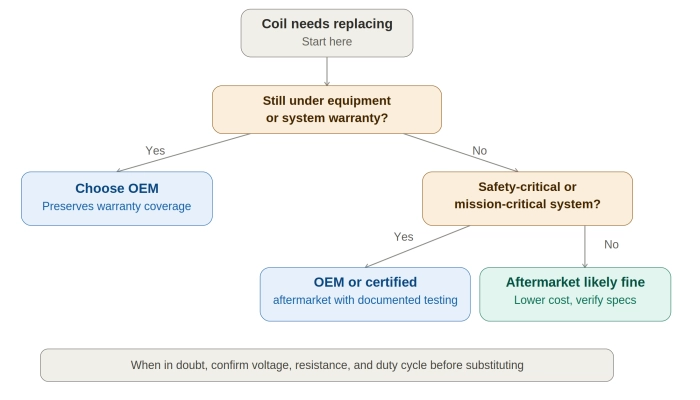

How to Choose the Right Coil for Your Application

The right choice depends on the specifics of your equipment, budget, and risk profile. A few practical guidelines:

• Equipment still under warranty:Stick with OEM coils to avoid warranty disputes.
• Critical or safety-related systems:OEM or a well-certified aftermarket equivalent with documented testing is the safer route.
• High-volume replacement or maintenance budgets:Aftermarket coils from a reputable, certified supplier can deliver significant savings without sacrificing reliability.
• Discontinued or hard-to-source OEM parts:Aftermarket may be the only practical option — prioritize suppliers who can confirm exact electrical and dimensional specs.
• Mission-critical uptime requirements:Weigh the cost of a coil failure (downtime, safety risk) against the savings of going aftermarket.

In short: OEM minimizes risk and guarantees compatibility, while a quality aftermarket coil can offer comparable performance at a lower cost — provided the supplier is transparent about specifications, testing, and certifications.

Frequently Asked Questions

Q:Are aftermarket solenoid valve coils as good as OEM?

A:Quality aftermarket coils from reputable manufacturers can match OEM performance in most standard applications. The key is verifying that voltage, resistance, duty cycle, and certifications align with your equipment’s requirements.

Q:Will using an aftermarket coil void my equipment warranty?

A:It depends on the manufacturer’s terms. Some OEMs explicitly require original parts to maintain warranty coverage; others allow third-party components as long as performance specs are met. Check your warranty documentation before substituting parts.

Q:How do I know if an aftermarket coil is compatible with my valve?

A:Match the coil’s voltage, frequency (AC/DC), resistance, connector type, and physical dimensions to your existing coil or valve manufacturer’s specifications. Reputable aftermarket suppliers provide cross-reference charts or compatibility guides.

Q:Why are aftermarket coils cheaper?

A:Aftermarket manufacturers don’t carry the original equipment brand premium and often operate at larger production scales across multiple valve platforms, which lowers per-unit costs.

Final Thoughts

There’s no universal right answer between OEM and aftermarket solenoid valve coils — the best choice depends on your equipment’s criticality, your maintenance budget, and how much risk you’re willing to absorb in exchange for cost savings. For warranty-sensitive or safety-critical systems, OEM remains the lower-risk path. For routine maintenance and high-volume replacement needs, a certified aftermarket coil can deliver reliable performance at a fraction of the cost.

Need help identifying the right coil for your application? [Reach out to our team] for a compatibility check and a quote tailored to your equipment.

Is your excavator experiencing sluggish movements, loss of power in a specific function, or erratic hydraulic behavior? Before you panic and look into replacing expensive main hydraulic pumps, check your solenoid valves.

As the “brain switches” of an excavator’s hydraulic system, these small components play a massive role in directing oil flow and controlling machine actions. Choosing the wrong replacement can lead to system overheating, poor performance, or costly downtime.

Whether you are maintaining a single machine or managing a diverse fleet, here is a professional guide on how to choose the right excavator solenoid valve.

2. Four Essential Factors to Consider When Selecting a Solenoid Valve

To ensure a perfect match and reliable performance, you need to look beyond just the appearance of the valve. Pay close attention to these four critical specifications:

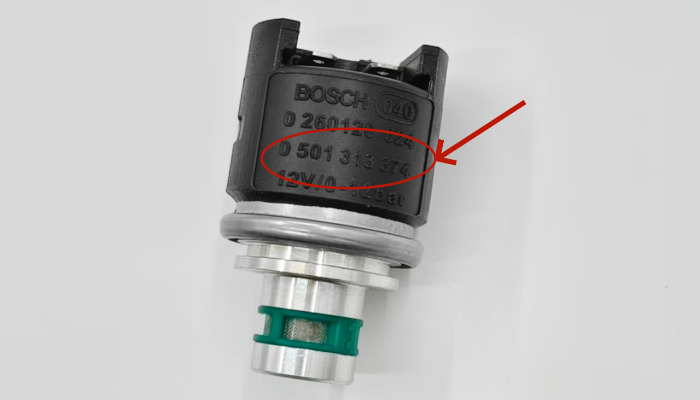

2.1 Cross-Reference the OEM Part Number

The absolute safest way to find the correct replacement is by using the OEM (Original Equipment Manufacturer) part number.

• Where to find it:This number is usually laser-etched or stamped on the metal casing of the old solenoid valve, or listed in your excavator’s parts manual.
• Why it matters:Even if two valves look identical on the outside, their internal spool design, flow ratings, and pressure tolerances can be completely different.

2.2 Match the Excavator Brand and Model

If the part number is unreadable due to wear and tear, you must match the exact brand, model, and serial number of your machine. Different brands utilize vastly distinct hydraulic architectures:

• JCB:Often uses specialized proportional solenoids for advanced pump control.
• Komatsu:Highly reliant on specific PC valve and LS (Load Sensing) valve configurations.
• Hitachi / Kobelco / Sany:Each requires precise voltage and block-mounting compatibility.

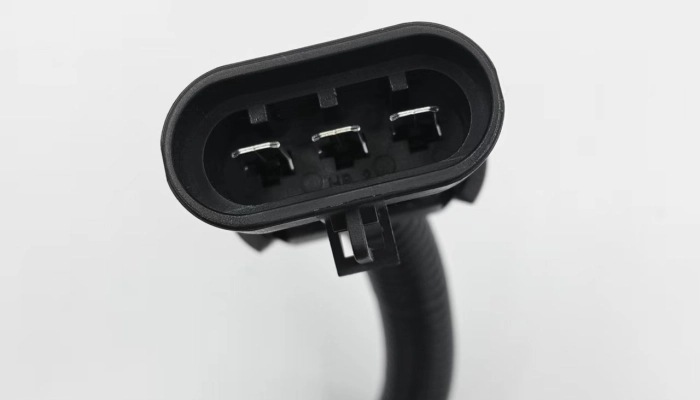

2.3 Verify Voltage and Electrical Connectors

An electrical mismatch can fry your new part instantly or cause it to fail to actuate.

• Voltage:Most heavy excavators run on a 24V DC system, while some mini-excavators use a 12V DC Always double-check.

Connector Type: Ensure the plug matches your excavator’s wiring harness. Common heavy-duty waterproof connectors include Deutsch (DT series) and AMP Superseal. Count the number of pins (usually 2-pin) and check the plug orientation.

2.4 Operating Pressure and Flow Rate

Excavator hydraulics operate under extreme pressures (often exceeding 30-35 MPa). The solenoid valve must be rated to handle these high-pressure environments. Buying a generic industrial hydraulic valve that isn’t rated for mobile construction equipment will lead to immediate seals blowing or valve housing cracks.

3. What Happens If You Choose a Low-Quality Solenoid Valve?

While it is tempting to go for the cheapest option available online, sub-standard solenoid valves often come with hidden costs:

• Coil Burnout:Poorly insulated copper coils melt under the high temperatures of continuous operation.
• Spool Sticking:Inferior metal manufacturing leads to premature wear, causing the valve to stick open or closed, which paralyzes your excavator’s functions.
• Internal Leakage:Bad seals cause hydraulic fluid to bypass the valve, dropping system pressure and making your machine feel weak.

Pro Tip: Look for solenoid valves that feature an IP67 or IP69K waterproof rating to protect against the dust, mud, and high-pressure washdowns typical of construction sites.

4. Looking for Reliable Excavator Solenoid Valves?

Finding the exact match for your fleet shouldn’t be a guessing game. At Lifeng Auto Parts Co., Ltd., we are a one-stop shop for premium-grade excavator spare parts.

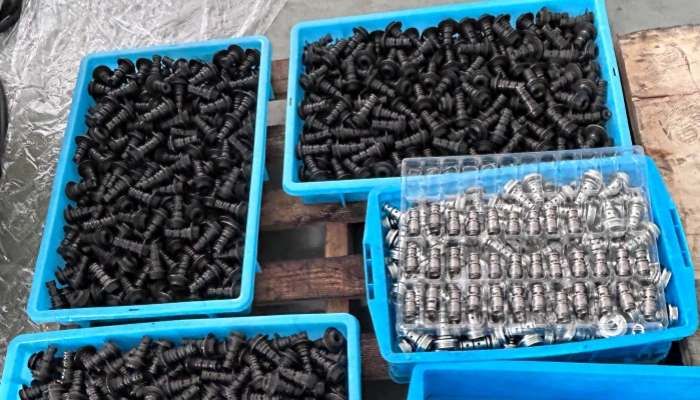

We supply high-performance replacement solenoid valves for all major global brands, including:

• JCB
• Case
• John deere
• Hyundai
• Bobcat
• Volvo

Every valve we ship undergoes rigorous pressure and electrical testing to ensure it meets or exceeds OEM standards, giving you factory-level reliability at a fraction of the cost.

Not sure which valve you need? Don’t risk ordering the wrong part. Simply send us a photo of your old valve or your excavator’s nameplate, and our technical experts will find the exact match for you!

👉 [Contact Our Experts Today] get a quick quote.

Every minute your excavator sits idle costs money. When a solenoid valve fails, boom movements become sluggish, hydraulic functions stop responding, or the entire machine shuts down mid-job. Yet most operators don’t know why it happened — or how to prevent it next time.

In this guide, you’ll learn the 7 most common reasons excavator solenoid valves fail, how to spot the warning signs early, and exactly what to do when one goes bad. Whether you’re a field technician, fleet manager, or equipment owner, this troubleshooting resource will save you time and unnecessary parts costs.

What Does an Excavator Solenoid Valve Do?

Before diving into failures, it helps to understand what this component actually does.

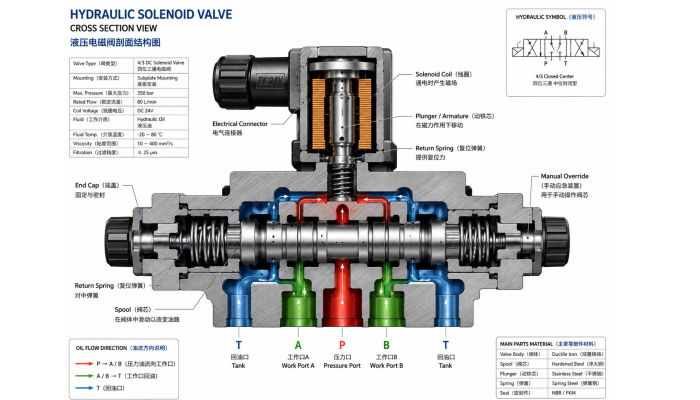

A solenoid valve is an electro-mechanical device that controls the flow of hydraulic fluid inside your excavator. When the operator moves a joystick, an electrical signal energizes the solenoid coil, creating a magnetic field that physically opens or closes a valve — directing pressurized oil to the boom, arm, bucket, or travel motors.

Key facts:

• Location: Mounted on the main control valve block
• Operating voltage: Typically 12V or 24V DC
• Controls: Boom, arm, bucket, swing, travel, and auxiliary functions
• Coil resistance (healthy): Usually 10–40 ohms (check your model’s specs)

Without a properly functioning solenoid valve, your excavator cannot translate operator commands into machine movement. Even a partial failure causes erratic, sluggish, or completely unresponsive hydraulic functions.

7 Common Reasons Excavator Solenoid Valves Fail

1. Hydraulic Oil Contamination

This is the #1 cause of solenoid valve failure on excavators worldwide.

Dirty hydraulic oil carries microscopic particles — metal shavings, rubber debris, and oxidized oil byproducts — that circulate through the entire hydraulic system. Over time, these particles lodge inside the solenoid valve’s internal channels, orifices, and spool, preventing it from opening or closing fully.

What goes wrong:

• Blocked internal passages restrict fluid flow
• Abrasive particles score valve seats and sealing surfaces
• Contaminated oil accelerates wear on moving components

Prevention: Change hydraulic oil and filters on schedule (typically every 1,000–2,000 hours depending on the manufacturer). Always use oil that meets your machine’s specification (ISO VG 46 or 68 are common). If you’ve had a major component failure (pump, motor, cylinder), flush the entire system before returning to service — metal debris from the failed part contaminates every downstream valve.

2. Electrical Issues — Coil Burnout

The solenoid coil is the electrical heart of the valve. When current passes through the coil, it generates the magnetic force needed to actuate the valve. Anything that disrupts this electrical relationship causes failure.

Common electrical causes:

• Coil burnoutfrom prolonged energization or excessive ambient heat
• Wrong voltage— supplying 24V to a 12V coil destroys it instantly
• Loose or corroded connectorscausing intermittent signal loss
• Damaged wiring harnessfrom vibration, chafing, or rodent damage
• Short circuitsfrom water or oil ingress into the connector

Diagnostic clue: A burnt smell near the valve block, or a coil that feels hot to the touch, points directly to electrical issues.

Fix: Use a multimeter to test coil resistance. Compare your reading against the manufacturer spec. A reading of zero (0 ohms) indicates a short; an open circuit (infinite resistance) means the coil is burnt. Replace the coil or the entire solenoid assembly depending on the damage.

3. Internal Spool Sticking or Jamming

Inside every solenoid valve is a precision-machined spool that slides back and forth to open and close hydraulic passages. When this spool sticks, the valve can’t respond to commands — or worse, it stays open when it should be closed (causing uncontrolled movement).

What causes spool sticking:

• Varnish buildup from degraded hydraulic oil coating the spool
• Debris particles wedging between the spool and bore
• Corrosion from water contamination in the hydraulic system
• Mechanical damage from overpressure events

Symptom: Functions work sometimes and fail other times. The excavator may respond normally after a rest period but fail again under load — a classic sign of intermittent spool sticking.

4. Seal and O-Ring Wear

Solenoid valves use rubber seals and O-rings to prevent internal and external leaks. These components degrade over time due to heat cycling, pressure fluctuations, and chemical exposure from hydraulic fluid additives.

Signs of seal failure:

• Visible oil leaking from around the valve body
• Gradual loss of hydraulic pressure across multiple functions
• Increased cycle times as fluid bypasses worn seals internally

Note: Using the wrong type of hydraulic fluid — particularly mixing mineral oil with synthetic or biodegradable fluid — accelerates seal degradation dramatically. Always verify fluid compatibility before topping up.

5. Overheating

Excavators working in high-ambient-temperature environments, or machines running low on hydraulic oil, generate excessive heat that shortens solenoid valve life significantly.

How heat damages solenoid valves:

• Degrades the coil insulation, leading to shorts and burnout
• Thins hydraulic oil, reducing lubrication between moving parts
• Accelerates O-ring hardening and cracking
• Causes thermal expansion that makes spools stick in their bores

At-risk scenarios: Continuous heavy-duty cycles without adequate cooling, blocked hydraulic oil cooler fins, or operating in ambient temperatures above 40°C (104°F) without appropriate oil viscosity adjustments.

Prevention: Keep the hydraulic oil cooler clean. Monitor oil temperature — most excavators should operate below 80°C (176°F). If your machine runs consistently hot, investigate the root cause (low oil level, blocked cooler, excessive load) rather than just replacing valves.

6. Water Contamination

Water in the hydraulic system is one of the most destructive and underdiagnosed problems in excavator maintenance. Water enters through breather caps during condensation cycles, damaged cylinder seals, or improper fluid storage.

How water causes solenoid valve failure:

• Causes rust and corrosion on metal components
• Reduces the film strength of hydraulic oil, increasing wear
• In cold climates, water freezes inside narrow valve passages, cracking components
• Promotes microbial growth (a grey/black sludge) in the hydraulic tank

Detection: Pull the dipstick or drain a small sample of hydraulic oil into a clear container. Milky, cloudy, or discolored oil indicates water contamination. A clean sample should be transparent amber.

7. Poor-Quality or Wrong Replacement Parts

This cause is increasingly common as excavator owners try to reduce parts costs. Low-quality aftermarket solenoid valves may use inferior coil wire, looser manufacturing tolerances, or incompatible seal materials — resulting in failures within weeks of installation.

Also watch out for:

• Installing a valve with incorrect flow rating for your application
• Using a valve rated for a different operating pressure range
• Mismatched connector types requiring forced wiring modifications

Recommendation: Source replacement solenoid valves from reputable OEM or verified aftermarket suppliers. Check that the replacement matches your original part number, operating voltage, pressure rating, and connector type. A quality aftermarket part can save 30–50% versus OEM pricing with equivalent performance — but only when sourced carefully.

Warning Signs Your Excavator Solenoid Valve Is Failing

Catch these symptoms early and you can often fix the problem with a coil replacement or cleaning — before you need a full valve replacement.

Symptom	Likely Cause
Sluggish boom/arm/bucket movement	Partial valve blockage or spool sticking
Function completely unresponsive	Burnt coil or total valve failure
Jerky or erratic movements	Intermittent electrical connection
Oil leak around valve block	Seal/O-ring failure
Machine works when cold, fails when warm	Thermal expansion causing spool jam
Error code on display (E-code / fault light)	Electrical fault detected by ECU
Burning smell from hydraulic area	Coil overheating or burnout

How to Diagnose a Faulty Excavator Solenoid Valve (Step by Step)

Before replacing any parts, run through this diagnostic sequence:

Step 1: Check for error codes. Connect a diagnostic scanner or check the instrument panel. Brands like Caterpillar (CAT ET), Komatsu (KOMTRAX), Hitachi (Dr. ZX), and Volvo (VCADS) provide specific fault codes pointing to solenoid circuit issues.

Step 2: Inspect wiring and connectors. With the machine off, visually inspect the wiring harness to the solenoid valve. Look for chafed insulation, corroded pins, moisture in connectors, or loose terminals. Clean corroded contacts with electrical contact cleaner and reseat connectors firmly.

Step 3: Test the power supply. With the machine on and the function activated, use a multimeter to verify 12V or 24V DC at the solenoid connector. No voltage means the problem is upstream (ECU, wiring, or switch) — not the valve itself.

Step 4: Measure coil resistance. With the coil disconnected, measure resistance across the two coil terminals. Compare against spec (check your service manual — typically 10–40 ohms). A reading of 0 ohms = short circuit. Infinite resistance = open/burnt coil. Either reading means the coil needs replacement.

Step 5: Perform a swap test. If electrical checks pass, swap the suspect valve with an identical valve from a functioning circuit. If the problem moves with the valve, the valve is faulty. If the problem stays in the same location, the issue is in the hydraulic circuit or wiring for that function.

Step 6: Inspect hydraulic oil condition. Check oil color, clarity, and smell. Milky = water contamination. Dark/black = severely degraded oil. Metallic smell or particles = internal component wear. Address oil condition before installing a new valve.

How to Fix or Replace an Excavator Solenoid Valve

Option A: Coil Replacement Only

If the valve body is mechanically sound and only the coil has failed, you can replace the coil without removing the entire valve assembly. This is faster, cheaper, and avoids the risk of disturbing hydraulic connections.

1. Relieve hydraulic pressure (lower all attachments to ground, turn off machine)
2. Disconnect the electrical connector
3. Remove the retaining nut securing the coil
4. Slide off the old coil, slide on the new one
5. Torque the retaining nut to spec (typically 3–5 Nm — don’t overtighten)
6. Reconnect the electrical connector and test

Option B: Full Valve Replacement

Required when the valve body is worn, internally damaged, or leaking from the body itself.

1. Relieve all hydraulic pressure — depressurize the system completely
2. Clean the area around the valve block before removal to prevent contamination
3. Label all hydraulic lines before disconnecting
4. Remove the valve using the correct torque wrench (over-torquing damages the valve block threads)
5. Install the new valve with fresh sealing washers/O-rings — never reuse old seals
6. Torque to manufacturer specification
7. Reconnect hydraulic lines and electrical connectors
8. Bleed air from the system by cycling functions slowly several times
9. Check for leaks and verify full function operation

How to Prevent Excavator Solenoid Valve Failure

Prevention is always cheaper than repair. These maintenance habits extend solenoid valve life significantly:

Hydraulic oil management:

• Change oil and return filters per the manufacturer’s service schedule
• Use the correct oil grade and viscosity for your operating climate
• Store hydraulic oil in sealed containers — never use barrels left open to air or moisture
• Inspect oil visually at every 250-hour service

Electrical system care:

• Apply dielectric grease to all solenoid connectors during reassembly
• Secure wiring harnesses away from sharp edges and hot surfaces
• Inspect connectors at every major service for corrosion and moisture ingress

Operating practices:

• Warm up the machine for 5–10 minutes in cold weather before full operation
• Monitor hydraulic oil temperature — sustained operation above 80°C accelerates wear
• Address any hydraulic leaks promptly — low oil level causes overheating

Scheduled inspection:

• Test solenoid coil resistance at every 1,000-hour service
• Visually inspect valve block area for leaks at every 250-hour service
• Replace hydraulic return filter at 500-hour intervals (or per manufacturer schedule)

Frequently Asked Questions

Q: How long does an excavator solenoid valve last?

Under normal operating conditions with proper maintenance, a solenoid valve should last 5,000–10,000 operating hours or more. However, contaminated oil, electrical faults, or overheating can reduce this to under 1,000 hours in severe cases.

Q: Can I clean a solenoid valve instead of replacing it?

Sometimes. If the valve failed due to contamination and the internal components are not worn or scored, disassembly and cleaning can restore function. However, if the spool bore or seat shows wear marks, cleaning will only provide a temporary fix. When in doubt, replace — the cost of a second repair typically exceeds the savings of cleaning.

Q: What happens if I keep operating with a failed solenoid valve?

Continuing to operate with a faulty valve causes secondary damage. A valve stuck in the open position can cause uncontrolled machine movement — a serious safety hazard. A leaking valve causes the hydraulic pump to work harder, accelerating pump wear. In most cases, the repair cost escalates the longer the fault is ignored.

Q: How do I know if it’s the solenoid valve or the main control valve?

The diagnostic swap test (Step 5 above) is the most reliable method. Additionally, if multiple functions in the same circuit are affected, the problem is more likely upstream in the main control valve or hydraulic pump. If a single specific function fails, the solenoid valve for that function is the prime suspect.

Q: Are aftermarket solenoid valves reliable?

Quality aftermarket valves from reputable suppliers can perform equivalently to OEM parts at 30–50% lower cost. The key is sourcing from suppliers who can confirm the part number cross-reference, provide documented quality testing, and offer a warranty.

Conclusion

Excavator solenoid valve failures don’t happen without reason. The seven causes covered in this guide — hydraulic oil contamination, coil burnout, spool sticking, seal wear, overheating, water contamination, and poor-quality parts — account for the vast majority of failures in the field.

The good news: most of these are preventable with consistent maintenance habits and early diagnosis. By monitoring your hydraulic oil condition, keeping electrical connections clean, and addressing symptoms before they escalate, you can extend solenoid valve life significantly and avoid costly unplanned downtime.

When a valve does fail, the step-by-step diagnostic process in this guide will help you identify the root cause quickly — so you’re replacing the right part the first time, not guessing.

1. Introduction

A hydraulic solenoid coil is a key electrical component in modern hydraulic control systems. It converts electrical energy into a magnetic force that operates the solenoid valve, controlling hydraulic oil flow in machinery such as excavators, loaders, and industrial equipment.

When a solenoid coil begins to fail, it can cause serious operational issues such as unstable hydraulic movement, weak response, or complete system shutdown. In heavy machinery brands such as JCB, BOBCAT, CASE Construction Machinery, and JOHN DEERE Construction Equipment, coil failure is one of the most common electrical hydraulic faults.

This guide explains the symptoms of a bad hydraulic solenoid coil, how to diagnose the problem, and how to confirm failure using simple testing methods.

2. What Does a Hydraulic Solenoid Coil Do?

A hydraulic solenoid coil generates a magnetic field when energized by an electrical current. This magnetic force moves the internal plunger of the solenoid valve, allowing hydraulic oil to flow through different channels.

In excavators and hydraulic systems, this function is essential for:

• Boom and arm movement control
• Travel speed switching
• Auxiliary hydraulic functions
• Directional control of hydraulic oil

Without a properly functioning coil, the solenoid valve cannot operate correctly, leading to system malfunction.

3. Symptoms of a Bad Hydraulic Solenoid Coil

A failing hydraulic solenoid coil usually shows clear electrical and mechanical symptoms. Early detection is critical to avoid costly hydraulic system damage.

Common Symptoms:

• No response when the solenoid is energized
• Weak or inconsistent hydraulic movement
• Coil overheating during operation
• Burning smell from the coil housing
• Intermittent hydraulic function failure
• Blown fuses or electrical faults
• Clicking sound without hydraulic action
• Machine enters error or safety mode

These symptoms often indicate electrical failure inside the coil, such as short circuit, open circuit, or insulation breakdown.

4. How to Distinguish Between a Healthy and a Failed Coil

After observing common failure symptoms such as overheating, weak hydraulic response, or electrical faults, the next step is to understand the visual and structural difference between a normal hydraulic solenoid coil and a failed one.

The comparison below helps technicians quickly identify whether the coil is in good condition or has already suffered internal damage such as winding burnout or insulation failure.

5.Main Causes of Coil Failure

Understanding the root causes helps prevent repeated failures.

Common causes include:

• Unstable or excessive voltage supply
• Continuous overheating during operation
• Moisture or water ingress
• Electrical short circuit or wiring damage
• Long-term vibration and mechanical stress
• Contaminated hydraulic environment

Poor maintenance conditions significantly increase coil failure rates in heavy machinery.

6.How to Test a Bad Solenoid Coil

The most reliable method to test a solenoid coil is using a digital multimeter.

Step 1: Disconnect the Coil

Disconnect the electrical connector from the solenoid valve.

Step 2: Measure Resistance

Set the multimeter to resistance (Ω) mode and test across the coil terminals.

• Normal coil → stable resistance within specification
• Open circuit → infinite resistance
• Short circuit → extremely low resistance

A failed reading usually indicates that the coil must be replaced.

7.Visual Inspection Tips

Before electrical testing, perform a quick visual inspection.

Check for:

• Burn marks or discoloration on coil body
• Broken or loose wires
• Corrosion or rust
• Oil contamination or leakage
• Cracked insulation or housing damage

Many failures can be identified visually before using diagnostic tools.

8.Can a Bad Solenoid Coil Be Repaired?

In most cases, a damaged or burned solenoid coil cannot be repaired.

Once internal winding damage or short circuits occur, replacement is the only reliable solution.

Using high-quality replacement coils helps restore stable hydraulic performance and reduces downtime.

9.Preventive Maintenance Tips

To extend coil service life:

• Maintain stable voltage supply
• Avoid continuous overheating
• Keep connectors clean and dry
• Inspect wiring regularly
• Prevent oil and water contamination
• Replace worn seals promptly

Proper maintenance significantly reduces unexpected hydraulic failures.

10.Applications in Heavy Equipment

Hydraulic solenoid coils are widely used in:

• Excavators
• Loaders
• Bulldozers
• Industrial hydraulic machines

They are critical components in machines manufactured by brands such as JCB, Komatsu, and Hitachi Construction Machinery.

11. FAQ

Q1:What are the symptoms of a bad hydraulic solenoid coil?

A:Common symptoms include overheating, no response, weak hydraulic action, and electrical failure.

Q2:Can a solenoid coil fail intermittently?

A:Yes, due to loose wiring, unstable voltage, or internal insulation damage.

Q3:How do you test a hydraulic solenoid coil?

A:Use a multimeter to measure resistance and check for open or short circuits.

Q4:What causes solenoid coils to burn out?

A:Overvoltage, overheating, and moisture ingress are the most common causes.

12. Conclusion

The symptoms of a bad hydraulic solenoid coil are usually easy to identify if proper diagnostic steps are followed. Early detection through resistance testing and visual inspection can prevent major hydraulic system failures.

If your machinery is experiencing solenoid coil failure, replacing it with a reliable aftermarket or OEM-compatible part is the most effective solution.

For high-quality hydraulic solenoid coils compatible with major excavator brands, professional suppliers can provide stable performance and long service life.

1. Introduction

Excavator solenoid valves are essential components in hydraulic control systems. They regulate oil flow, control hydraulic functions, and ensure smooth operation of the excavator. When a solenoid valve fails, the machine may experience slow movement, attachment malfunction, hydraulic pressure issues, or even complete operational failure.

Understanding how to test an excavator solenoid valve can help operators and technicians quickly diagnose problems, reduce downtime, and avoid costly repairs. In this guide, we will explain the common symptoms of a faulty solenoid valve, the tools required for testing, and step-by-step troubleshooting methods for excavator hydraulic systems.



2. What Does an Excavator Solenoid Valve Do?

An excavator solenoid valve controls the flow of hydraulic oil inside the machine’s hydraulic system. It uses electromagnetic force to open or close internal valve passages, allowing hydraulic fluid to move between different components.

In modern excavators, solenoid valves are commonly used to control travel speed, boom movement, swing functions, auxiliary attachments, and pilot hydraulic circuits. When the operator activates a control lever or switch, an electrical signal energizes the solenoid coil, which then moves the valve spool to direct hydraulic flow.

Because excavators operate in harsh environments with vibration, heat, dust, and moisture, solenoid valves can wear out over time and may require regular inspection and testing.



3. Common Symptoms of a Bad Excavator Solenoid Valve

A faulty excavator solenoid valve can cause various hydraulic and electrical problems. Identifying these symptoms early can help prevent severe machine damage and expensive downtime.

• Slow or weak hydraulic movement
• Excavator attachment not responding
• Travel speed cannot switch properly
• Hydraulic functions stop intermittently
• Unusual clicking or buzzing noise
• Blown fuse or electrical overload
• Overheating solenoid coil
• Hydraulic pressure instability
• Machine enters safety or limp mode

In many cases, these symptoms may indicate coil failure, damaged wiring, contamination inside the valve, or insufficient electrical voltage reaching the solenoid.



4.Tools Needed to Test a Solenoid Valve

Before testing an excavator solenoid valve, prepare the necessary diagnostic tools to ensure accurate results and safe operation.

• Digital multimeter
• DC power supply or battery
• Hydraulic pressure gauge
• Screwdrivers and basic hand tools
• Cleaning cloth and contact cleaner
• Machine service manual
• Protective gloves and safety glasses

Using proper testing equipment allows technicians to quickly identify electrical faults, coil damage, voltage problems, and hydraulic response issues.



5. Step-by-Step: How to Test an Excavator Solenoid Valve

Step 1: Perform a Visual Inspection

Start by visually inspecting the excavator solenoid valve and surrounding wiring. Many solenoid valve failures are caused by external damage rather than internal component failure.

Check for the following issues:

• Loose or damaged electrical connectors
• Broken wires or poor grounding
• Oil leakage around the valve body
• Corrosion caused by moisture
• Burn marks or melted coil housing
• Dust or debris contamination

If any visible damage is found, repair or replace the affected components before continuing with electrical testing.

Step 2: Test the Solenoid Coil Resistance

One of the most important steps in excavator solenoid valve testing is measuring the coil resistance using a digital multimeter.

First, disconnect the electrical connector from the solenoid coil. Set the multimeter to the resistance (Ohms) setting and place the probes on the coil terminals.

A healthy solenoid coil usually shows resistance within the manufacturer’s specified range. If the multimeter displays infinite resistance, the coil may be open or burned out. Extremely low resistance may indicate an internal short circuit.

Abnormal resistance readings are often signs of coil failure and usually require replacement of the solenoid coil assembly.

According to Ohm’s Law, resistance is directly related to voltage and current flow inside the solenoid coil. Stable resistance values usually indicate proper electrical condition.

Step 3: Apply Power to the Solenoid Valve

After checking coil resistance, apply the correct voltage to the solenoid valve to verify magnetic activation.

Connect the solenoid coil to an appropriate power source according to the machine specifications. When energized, the solenoid should produce a clear clicking sound as the internal plunger moves.

If there is no clicking sound or movement, the coil may be defective, the internal plunger may be stuck, or the supplied voltage may be insufficient.

Avoid applying incorrect voltage for extended periods, as overheating can permanently damage the solenoid coil.



6. How to Tell If the Solenoid Coil Is Bad

A damaged excavator solenoid coil may show several warning signs during operation and testing.

No magnetic response when power is applied

• Burning smell from the coil housing
• Intermittent hydraulic operation
• Coil surface overheating
• Blown fuses during machine operation
• Abnormal resistance readings

In most cases, a burned or shorted solenoid coil cannot be repaired and should be replaced with a high-quality compatible replacement coil.



7.Preventive Maintenance Tips

Regular maintenance can significantly extend the service life of excavator solenoid valves and reduce unexpected hydraulic failures.

• Keep electrical connectors clean and dry
• Inspect wiring regularly for wear or vibration damage
• Avoid exposing the coil to excessive heat
• Replace damaged seals to prevent oil contamination
• Check voltage supply during routine maintenance
• Clean hydraulic systems to reduce internal contamination

Proper preventive maintenance not only improves excavator performance but also reduces machine downtime and repair costs.



8.Conclusion

Testing an excavator solenoid valve is an important part of hydraulic system troubleshooting and preventive maintenance. By performing visual inspection, resistance testing, and power activation checks, technicians can quickly identify faulty components and restore machine performance.

If your excavator experiences hydraulic control problems or solenoid coil failure, replacing damaged components with reliable aftermarket or OEM-compatible parts can help minimize downtime and improve operational efficiency.

Our factory specializes in high-quality excavator solenoid valve coils compatible with major brands including JCB, Komatsu, Hitachi, Kobelco, Volvo, and Hyundai. Contact us for OEM manufacturing and bulk order support.

Introduction:
In industrial automation, irrigation systems, medical equipment, and even household appliances, solenoid valves are ubiquitous and crucial control components. They act like switches in fluid pipelines, directing the flow of various media, such as water, gas, and oil. But have you ever wondered how this often inconspicuous component actually works? This article will provide an in-depth analysis of the solenoid valve, revealing its internal structure and operating principles.

What is a Solenoid Valve?

A solenoid valve is a fundamental automation component that uses electromagnetic force to control the flow or direction of fluids (liquids and gases). It typically consists of two main components: a solenoid coil and a valve body. When the coil is energized, it generates a magnetic field, actuating mechanical components within the valve body, thereby changing the valve’s open or closed state.

Core Components

To understand its operating principle, we first need to understand its internal structure. A typical direct-acting solenoid valve consists of the following components:

1.Body:

The main structure of the valve, with an inlet port and an outlet port, serves as a fluid passage.

2.Solenoid Coil:

An electromagnet made of wound copper wire, it serves as the valve’s power source. It generates a magnetic field when energized and dissipates when de-energized.

3.Plunger/Armature:

A movable ferromagnetic metal core located within the coil. It is the direct target of the magnetic field and acts as the “piston” that actuates the valve.

4.Pilot:

Connected to the plunger, the seal at its end opens or closes the fluid passage.

5.Seal:

Typically made of an elastic material such as rubber or polytetrafluoroethylene, it ensures a leak-proof seal when the valve is closed.

6.Spring:

When the coil is de-energized, the spring provides a restoring force, pushing the plunger and valve core back to their default position.

7.Orifice:

The passage through which fluid flows.

Working Principle: The Magic of Power On and Power Off

The operation of a solenoid valve follows a clear physical process, centered on the principle that “electricity generates magnetism, and magnetism generates force.”

1. De-energized State (Normally Closed Solenoid Valve)

In the de-energized default state, the spring pushes the plunger and valve core downward, forcing the seal on the valve core to tightly cover the orifice. In this state, fluid entering the inlet is blocked from flowing to the outlet, and the valve is in the closed state.

(Hint: A diagram showing the spring compressed and the seal blocking the orifice can be included here.)

2. Energized State

When current flows through the solenoid coil, it generates a strong magnetic field.

This magnetic field attracts the ferromagnetic plunger inside, which overcomes the spring force and fluid pressure and moves upward.

The valve core connected to the plunger is also lifted, and the seal moves away from the orifice, opening a passage. Fluid can flow from the inlet through the orifice to the outlet, and the valve is in the open state.

(Hint: A diagram showing the plunger being attracted and fluid flowing can be included here.)

Once the current is turned off, the magnetic field instantly disappears, and the spring force immediately pushes the plunger and valve core back to their original position, reclosing the orifice and cutting off fluid flow.

In simple terms: When power is on, the valve opens; when power is off, the valve closes. This process responds extremely quickly, typically in milliseconds.

Main Types: Direct-Acting vs. Pilot-Operated

The principle described above is the simplest direct-acting solenoid valve. It relies on electromagnetic force to directly open the main orifice and is suitable for small pipelines and lower pressures.

For larger diameters and higher pressures, pilot-operated solenoid valves are more common. Their operating principle is slightly different:

They use the pressure of the fluid in the pipeline to open or close the main valve.

The solenoid coil first controls the opening and closing of a small pilot orifice.

The opening and closing of the pilot orifice creates a pressure differential between the upper and lower chambers of the valve diaphragm or piston, which in turn drives the main valve open and close.

Advantages: A small solenoid coil can control large flow rates, resulting in energy efficiency and high efficiency.

Common Application Scenarios
Once you understand the principles, it’s easy to understand why solenoid valves are so important:

1.Industrial Automation:

Control pneumatic cylinders, hydraulic systems, and sprinkler systems.

2.Home Appliance Industry:

Control the flow of water in washing machines and dishwashers.

3.Irrigation Systems:

Automatically control watering in different areas.

4.Medical Equipment:

Precisely control the flow of gas and liquid in ventilators and dental chairs.

5.Automotive Industry:

Transmission Control, Exhaust Gas Recirculation (EGR) Systems.

Conclusion

Although small, solenoid valves are the unsung heroes of modern automation. Their ingenious design converts electrical energy into magnetic energy, then precisely controls fluid flow through mechanical action, achieving the effect of “controlling large quantities with small components.” Whether it’s a simple direct-acting valve or a complex pilot-operated valve, their core lies in the sophisticated application of electromagnetic principles.

We hope this article has provided you with a deeper understanding of this critical component: the solenoid valve. If you have any questions regarding selection or application, please feel free to contact our expert team for professional advice!

Need help choosing the right solenoid valve?
Contact our technical team today.
